ALFG2PF12 - Panasonic

Description: PCB RELAY, 31A, 1NO, 12Vdc coil

Download ALFG2PF12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

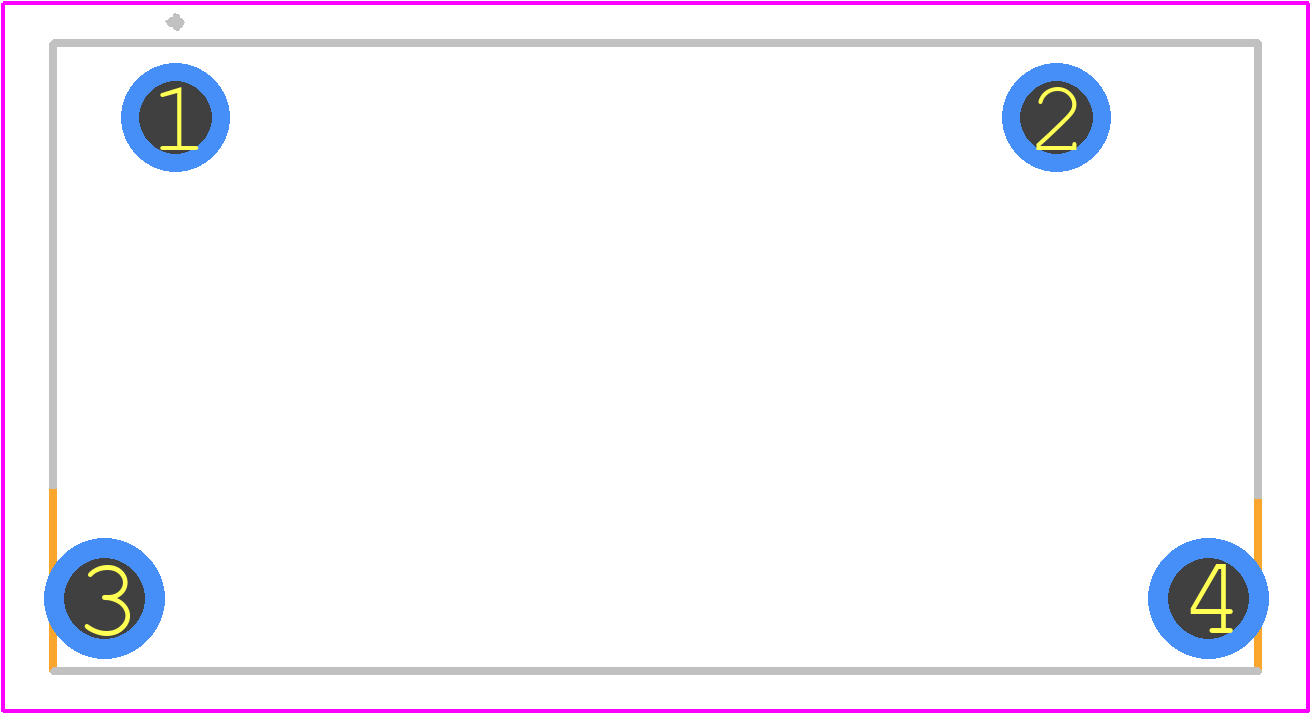

ALFG2PF12 - Panasonic PCB footprint - Other - Other - ALFG2PF12-1
click to zoom
3D Models
ALFG2PF12 - Panasonic  - 3D model - Other - ALFG2PF12-1
click to zoom

ALFG2PF12 Details

  • Manufacturer Part Number:

    ALFG2PF12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.5

  • Body Breadth:

    15.7 mm

  • Body Height:

    23.3 mm

  • Body Length or Diameter:

    30.1 mm

  • Coil Current(DC)-Max:

    0.117 A

  • Coil Operate Voltage(DC):

    8.4 V

  • Coil Power:

    1400 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    103 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    31A@250VAC

  • Contact Current(AC)-Max:

    31 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    30000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.1mm x 15.7mm x 23.3mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ALFG2PF12 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Apply a conformal coating to the PCB to protect against moisture. Ensure the coating is compatible with the component's materials and follows the manufacturer's guidelines.
  • The maximum allowable voltage for the input pins is 5.5V, exceeding which may cause damage to the device.
  • Yes, the ALFG2PF12 is suitable for high-frequency applications up to 100 MHz. However, ensure proper PCB layout and decoupling to minimize signal degradation.
  • Implement ESD protection measures such as TVS diodes or ESD arrays on the input lines to prevent damage from electrostatic discharge.
