ALFG2PF121 - Panasonic

Description: Load for solar inverter, Compact size, 1 Form A 22 A/33 A, Power relays

Download ALFG2PF121 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ALFG2PF121 - Panasonic - PCB symbol
click to zoom
PCB Footprints

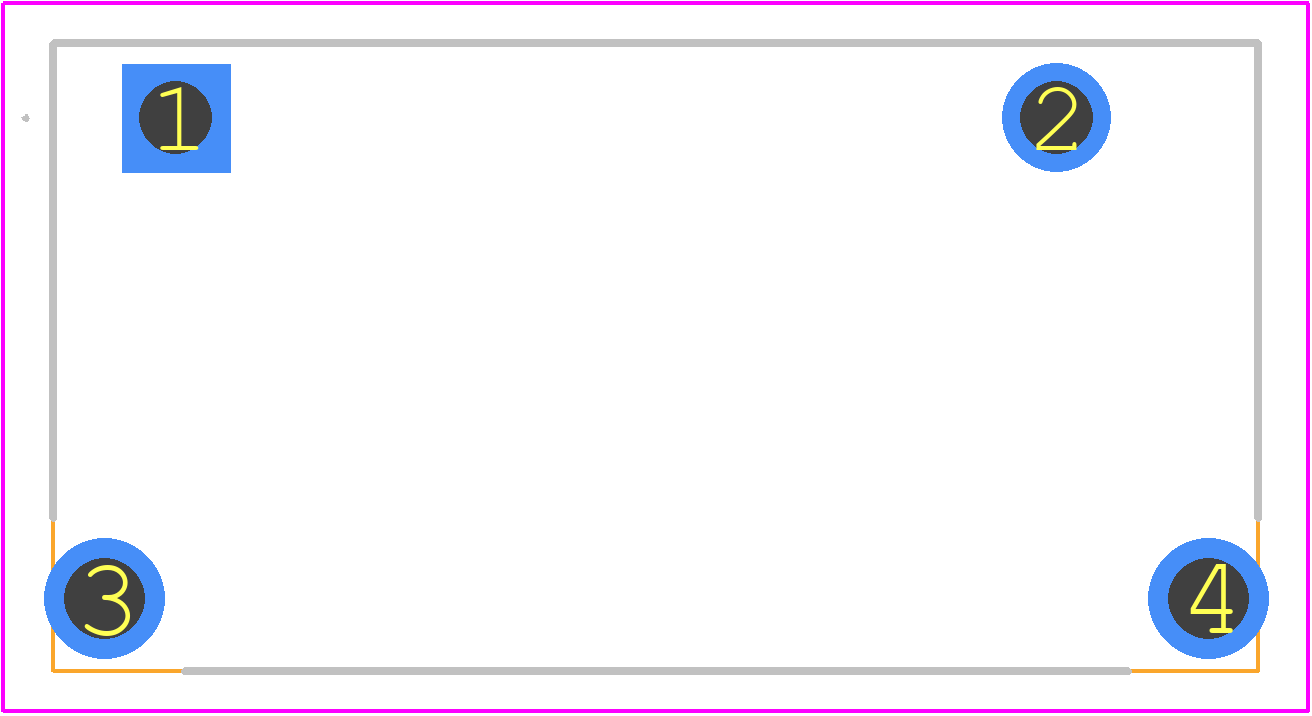

ALFG2PF121 - Panasonic PCB footprint - Other - Other - ALFG1PF12-1
click to zoom
3D Models
ALFG2PF121 - Panasonic - 3D model - Other - ALFG1PF12-1
click to zoom

ALFG2PF121 Details

  • Manufacturer Part Number:

    ALFG2PF121

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.5

  • Body Breadth:

    15.7 mm

  • Body Height:

    23.3 mm

  • Body Length or Diameter:

    30.1 mm

  • Coil Current(DC)-Max:

    0.117 A

  • Coil Operate Voltage(DC):

    8.4 V

  • Coil Power:

    1400 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    103 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    33A@250VAC

  • Contact Current(AC)-Max:

    33 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    30000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.1mm x 15.7mm x 23.3mm

  • Reference Standard:

    CUL; UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Sealing:

    MOISTURE PROOF; RT2

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ALFG2PF121 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Keep the input and output traces separate and avoid crossing them to minimize crosstalk.
  • Follow the recommended derating guidelines for temperature and voltage. Ensure good thermal management, such as using a heat sink or thermal interface material, and avoid exceeding the maximum junction temperature.
  • The maximum allowable voltage is 12.6V, but it's recommended to operate within the specified voltage range (10.5V to 12.6V) for optimal performance and reliability.
  • Yes, the ALFG2PF121 is suitable for switching regulator applications. However, ensure that the switching frequency is within the recommended range (100 kHz to 500 kHz) and follow the recommended layout and component selection guidelines.
  • Check the PCB layout, component selection, and soldering quality. Verify that the input voltage and current are within the specified range. Use a thermal camera or thermometer to check for hotspots. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ALFG2PF121 Overview

Use the download button to access the ALFG2PF121 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALFG2, or try a keyword search, such as Power/Signal Relays
