ALFG2PF18 - Panasonic

Description: Load for solar inverter, Compact size, 1 Form A 22 A/33 A, Power relays

Download ALFG2PF18 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ALFG2PF18 - Panasonic - PCB symbol
click to zoom
PCB Footprints

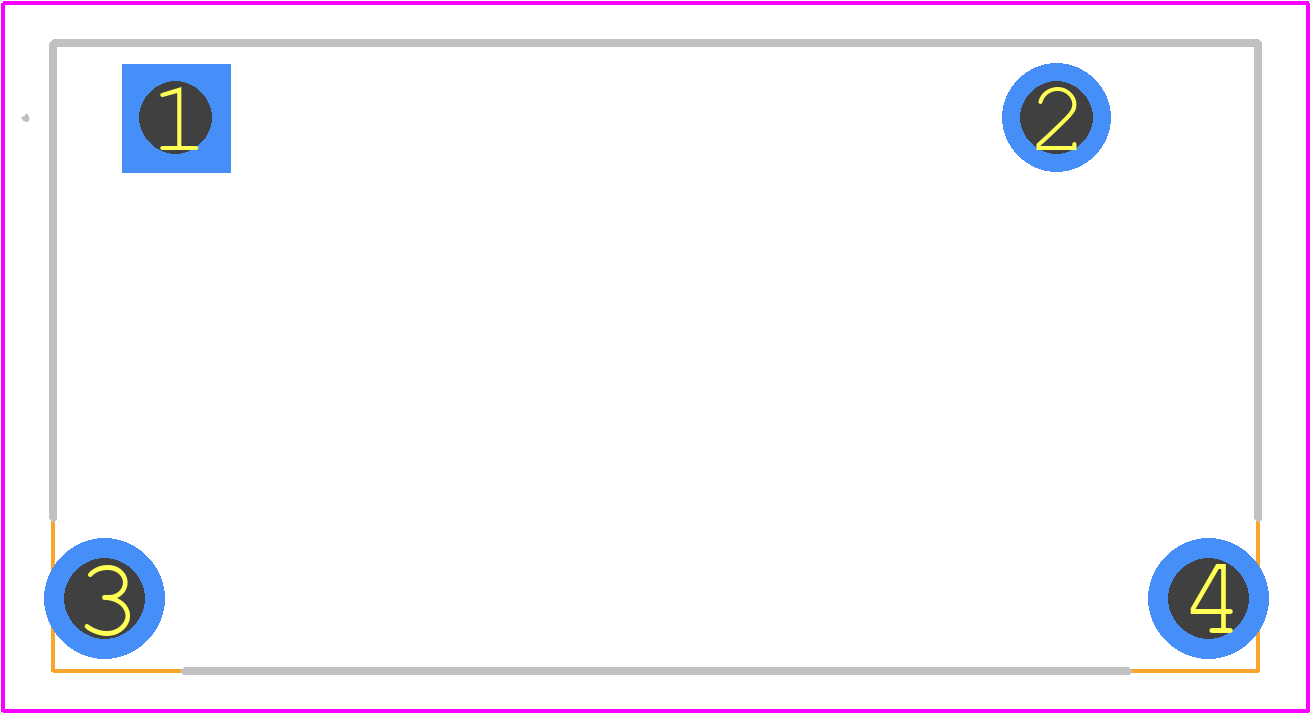

ALFG2PF18 - Panasonic PCB footprint - Other - Other - ALFG1
click to zoom
3D Models
ALFG2PF18 - Panasonic - 3D model - Other - ALFG1
click to zoom

ALFG2PF18 Details

  • Manufacturer Part Number:

    ALFG2PF18

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.6

  • Body Breadth:

    15.7 mm

  • Body Height:

    23.3 mm

  • Body Length or Diameter:

    30.1 mm

  • Coil Current(DC)-Max:

    0.078 A

  • Coil Operate Voltage(DC):

    12.6 V

  • Coil Power:

    1400 mW

  • Coil Release Voltage(DC):

    1.8 V

  • Coil Resistance:

    203 Ω

  • Coil Voltage(DC)-Max:

    18 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    31A@250VAC

  • Contact Current(AC)-Max:

    31 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    30000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.1mm x 15.7mm x 23.3mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ALFG2PF18 Frequently Asked Questions (FAQs)

  • Panasonic recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the input and output. The input and output pins should be routed away from each other to minimize noise coupling.
  • To ensure reliability, Panasonic recommends operating the ALFG2PF18 within the specified temperature range (-40°C to 125°C). Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • Yes, the ALFG2PF18 can be used in switching regulator applications. However, ensure that the input voltage is within the specified range, and the output current is within the recommended limits to prevent overheating and damage.
  • To troubleshoot issues, check the PCB layout for noise coupling, ensure proper input and output decoupling, and verify that the input voltage is within the specified range. Also, check for any signs of physical damage or overheating.
