ALFG2PF24 - Panasonic

Description: Load for solar inverter, Compact size, 1 Form A 22 A/33 A, Power relays

Download ALFG2PF24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ALFG2PF24 - Panasonic - PCB symbol
click to zoom
PCB Footprints

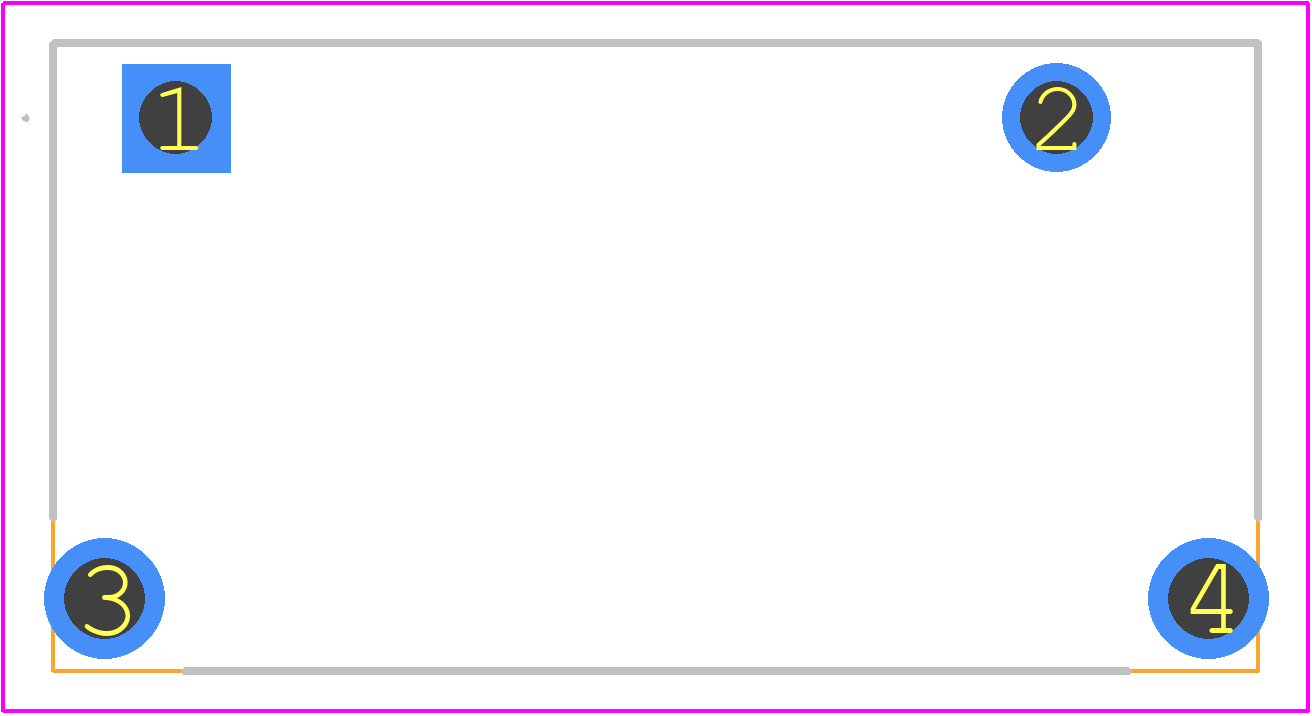

ALFG2PF24 - Panasonic PCB footprint - Other - Other - ALFG1
click to zoom
3D Models
ALFG2PF24 - Panasonic - 3D model - Other - ALFG1
click to zoom

ALFG2PF24 Details

  • Manufacturer Part Number:

    ALFG2PF24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.6

  • Body Breadth:

    15.7 mm

  • Body Height:

    23.3 mm

  • Body Length or Diameter:

    30.1 mm

  • Coil Current(DC)-Max:

    0.059 A

  • Coil Operate Voltage(DC):

    16.8 V

  • Coil Power:

    1400 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    410 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    31A@250VAC

  • Contact Current(AC)-Max:

    31 A

  • Contact Voltage(AC)-Max:

    250 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    30000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    20 ms

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.1mm x 15.7mm x 23.3mm

  • Reference Standard:

    UL; VDE

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

ALFG2PF24 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power and ground traces as short as possible and use a common ground point for all components.
  • Use a thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Also, follow the recommended derating guidelines for high-temperature operation.
  • The maximum allowable voltage for the ALFG2PF24 is 25V, but it's recommended to operate within the specified voltage range of 12V to 24V for optimal performance and reliability.
  • Yes, the ALFG2PF24 is designed to operate in humid environments, but it's recommended to follow the recommended moisture sensitivity level (MSL) handling and storage procedures to prevent damage.
  • Use a logic analyzer or oscilloscope to monitor the input and output signals, and check for proper power supply voltage, decoupling, and grounding. Also, consult the datasheet and application notes for troubleshooting guidelines.
