Panasonic recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the input and output. The input and output pins should be routed away from each other to minimize noise coupling. Additionally, a 10nF decoupling capacitor should be placed close to the VCC pin.
To ensure reliability in high-temperature applications, it's essential to follow Panasonic's recommended derating guidelines for the device. The device should be operated within the specified temperature range, and the PCB should be designed to minimize thermal resistance. Additionally, a thermal pad or heat sink can be used to dissipate heat.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
Yes, the ALFG2PF241 can be used in switching regulator applications. However, it's essential to ensure that the device is operated within the specified frequency range and that the input and output pins are properly filtered to minimize noise and ringing.
To troubleshoot issues with the ALFG2PF241, start by verifying the PCB layout and ensuring that the input and output pins are properly routed and decoupled. Check the input voltage and current, and ensure that the device is operated within the specified temperature range. Use an oscilloscope to measure the output voltage and current, and look for signs of oscillation or instability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALFG2PF241 Overview

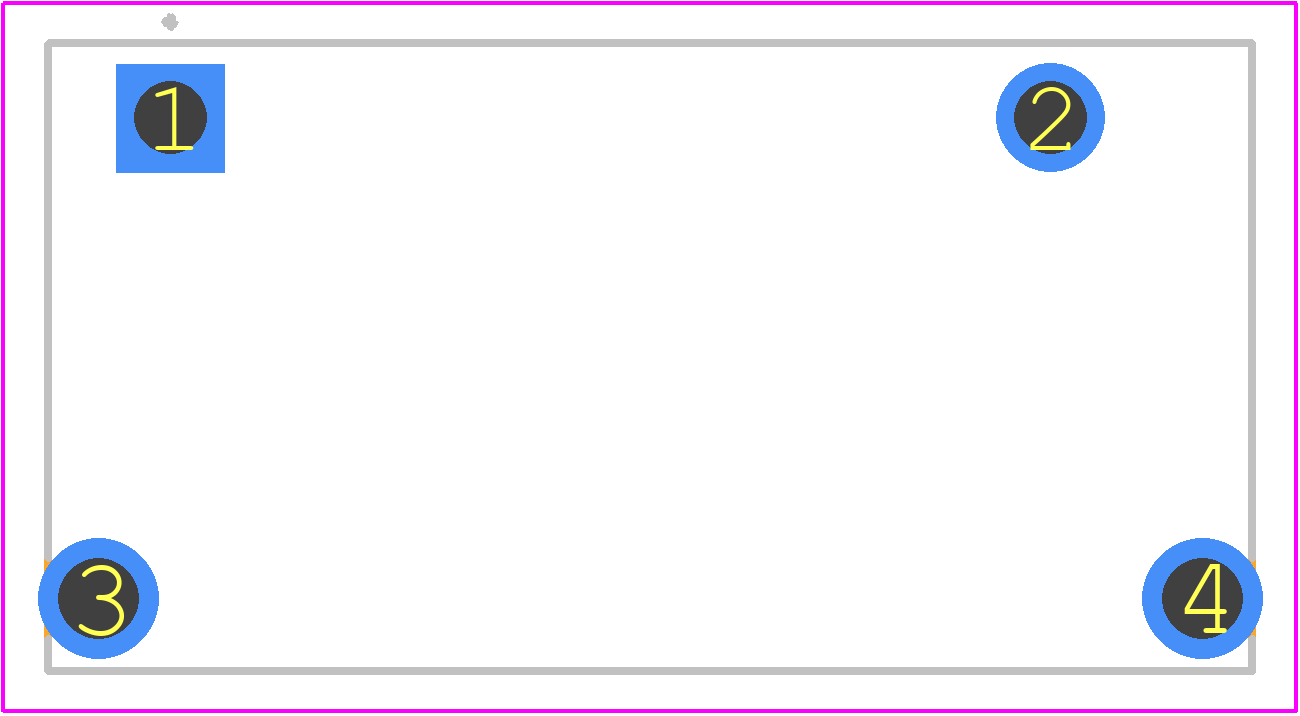

Use the download button to access the ALFG2PF241 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALFG2,
or try a keyword search, such as Power/Signal Relays
