A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a decoupling capacitor (e.g., 0.1 μF) between VCC and GND, and place it close to the device.
To ensure accurate output, ensure proper PCB layout, use a stable power supply, and minimize noise coupling. Also, use a low-pass filter (e.g., RC filter) to remove high-frequency noise from the output signal.
The recommended operating temperature range for the ALS31300EEJASR-1000 is -40°C to 150°C. However, the device can operate up to 175°C for short periods of time.
The output signal from the ALS31300EEJASR-1000 is a differential signal. Use a differential amplifier or a instrumentation amplifier to condition the signal before processing or ADC conversion.
The maximum allowable current for the ALS31300EEJASR-1000 is 20 mA. Exceeding this current may damage the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALS31300EEJASR-1000 Overview

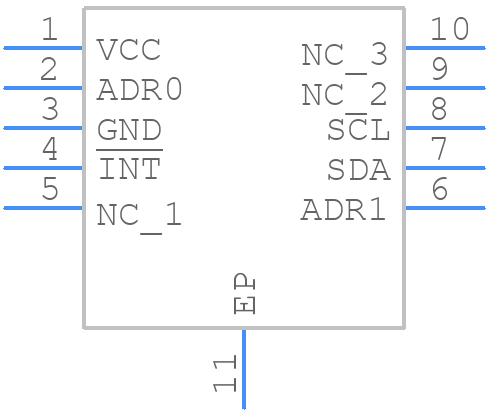

Use the download button to access the ALS31300EEJASR-1000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALS31,
or try a keyword search, such as Magnetic Field Sensors
