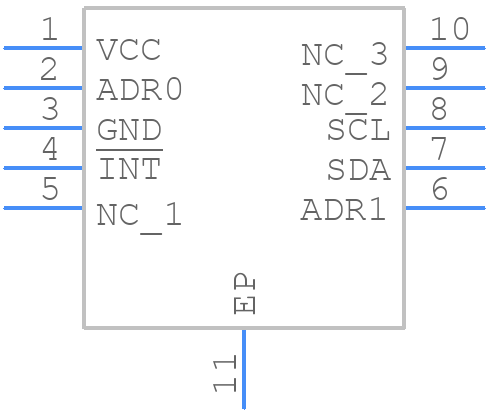

ALS31300EEJASR-JOY - Allegro Microsystems

ALS31300EEJASR-JOY Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the ALS31300EEJASR-JOY?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital traces separate and avoid crossing them over each other.
• How do I ensure accurate output from the ALS31300EEJASR-JOY in the presence of external magnetic fields?
  Use a mu-metal shield around the device, and ensure the PCB is designed to minimize the effects of external magnetic fields. Also, consider using a differential output configuration to reduce the effects of external interference.
• What is the recommended power-up sequence for the ALS31300EEJASR-JOY?
  Power up the device in the following sequence: VCC, then VDD, and finally the input voltage. This ensures proper initialization of the internal circuits.
• How do I handle the thermal shutdown feature of the ALS31300EEJASR-JOY?
  The thermal shutdown feature is activated when the junction temperature exceeds 170°C. To handle this, ensure proper heat sinking, and consider adding a thermal monitoring circuit to detect and respond to thermal shutdown events.
• What is the recommended method for filtering the output of the ALS31300EEJASR-JOY?
  Use a low-pass filter with a cutoff frequency of around 1 kHz to filter out high-frequency noise and aliasing effects. A simple RC filter or a more complex active filter can be used depending on the application requirements.
