ALS31313KLEATR-JOY - Allegro Microsystems

Description: Automotive 3D Linear Hall-Effect Sensor

Download ALS31313KLEATR-JOY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

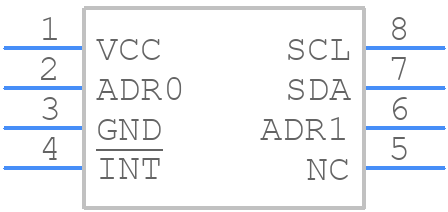

ALS31313KLEATR-JOY - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ALS31313KLEATR-JOY - Allegro Microsystems PCB footprint - Other - Other - Package LE, 8-Pin eTSSOP
click to zoom
3D Models
ALS31313KLEATR-JOY - Allegro Microsystems - 3D model - Other - Package LE, 8-Pin eTSSOP
click to zoom

ALS31313KLEATR-JOY Details

  • Manufacturer Part Number:

    ALS31313KLEATR-JOY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    4.4 mm

  • Housing:

    PLASTIC

  • Magnetic Field Range-Max:

    200 mT

  • Magnetic Field Range-Min:

    -200 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    3.9 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Circuit Type:

    SINGLE-ENDED

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Range:

    0.36V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    3.5 V

  • Supply Voltage-Min:

    2.65 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

ALS31313KLEATR-JOY Frequently Asked Questions (FAQs)

  • Allegro recommends a 4-layer PCB with a solid ground plane, and to keep the sensitive analog signals away from the digital signals. A good layout practice is to use a star-ground configuration and to minimize the length of the traces.
  • The thermal pad should be connected to a solid ground plane on the PCB to ensure good thermal dissipation. A thermal via or a copper pour connected to the ground plane is recommended.
  • Allegro recommends a 10uF to 22uF ceramic capacitor with a voltage rating of 10V or higher, placed as close as possible to the VCC pin.
  • The output pins can be configured for 3-wire or 5-wire mode by connecting the appropriate pins to VCC or GND. Refer to the datasheet for the specific pin connections for each mode.
  • The ALS31313KLEATR-JOY has an operating temperature range of -40°C to 125°C, but the device's performance may degrade at extreme temperatures.
