ALT80800KLPATR - Allegro Microsystems

Description: Automotive-Grade, Constant-Current 2.0 A PWM Dimmable Synchronous Buck LED Driver

Download ALT80800KLPATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

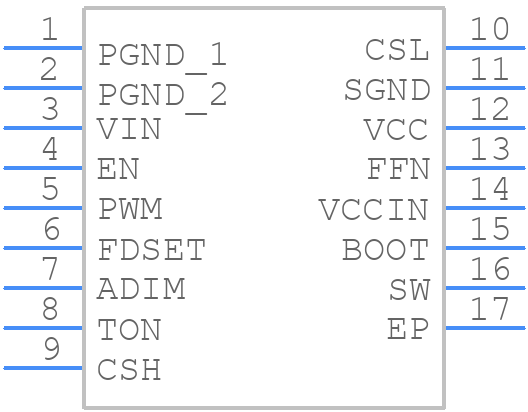

ALT80800KLPATR - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ALT80800KLPATR - Allegro Microsystems PCB footprint - Other - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom
3D Models
ALT80800KLPATR - Allegro Microsystems - 3D model - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom

ALT80800KLPATR Details

  • Manufacturer Part Number:

    ALT80800KLPATR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    55 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ALT80800KLPATR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the device away from heat sources and ensure good airflow.
  • Use a low-impedance current sense resistor (CSR) and ensure the CSR is placed close to the device. Also, use a Kelvin connection to the CSR to minimize noise and ensure accurate sensing.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input. This helps to filter out noise and ensure stable operation.
  • Use a TVS diode or a zener diode to clamp the input voltage. Also, consider adding a fuse or a PTC resettable fuse to protect against overcurrent conditions.
  • The recommended operating temperature range is -40°C to 125°C. However, the device can operate up to 150°C with derating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ALT80800KLPATR Overview

Use the download button to access the ALT80800KLPATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALT80, or try a keyword search, such as Display Drivers
