ALT80802KEJJTR - Allegro Microsystems

Description: Wide Input Voltage, Adjustable Frequency, Buck-Boost or Buck 2 Amp LED Driver

Download ALT80802KEJJTR Model

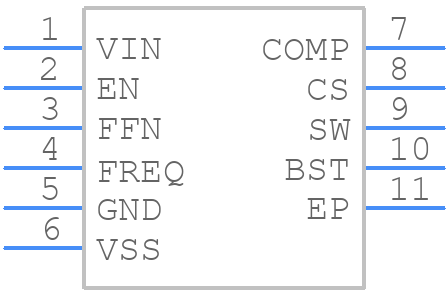

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ALT80802KEJJTR - Allegro Microsystems PCB footprint - Other - Other - EJ,10-Pin DFN with Exposed Thermal Pad and Wettable Flank
click to zoom
3D Models
ALT80802KEJJTR - Allegro Microsystems  - 3D model - Other - EJ,10-Pin DFN with Exposed Thermal Pad and Wettable Flank
click to zoom

ALT80802KEJJTR Details

  • Manufacturer Part Number:

    ALT80802KEJJTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-09-13

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    50 V

  • Supply Voltage-Min:

    3.8 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

ALT80802KEJJTR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Use a heat sink or thermal pad, ensure good airflow, and consider derating the device's current output at high temperatures. Also, follow the recommended PCB layout and thermal design guidelines.
  • The maximum allowed voltage on the EN pin is VCC + 0.3V. To protect it from overvoltage, use a voltage clamp or a Zener diode with a resistor divider to limit the voltage to the recommended range.
  • Use a low-pass filter with a capacitor and a series resistor, or an LC filter with an inductor and a capacitor. The filter values depend on the specific application and noise requirements.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended, placed as close to the VIN pin as possible. The capacitor should be rated for the input voltage and have a low ESR.
