The recommended PCB land pattern for ALZ11F05W can be found in the Panasonic's recommended PCB layout document or by contacting their technical support. The document provides detailed information on the recommended land pattern, including the pad size, shape, and spacing.
Proper thermal management is crucial for the reliability and performance of ALZ11F05W. Ensure good thermal conductivity by using a thermal pad or thermal tape on the backside of the component. Also, design the PCB to allow for good airflow and consider using a heat sink if necessary.
Although the datasheet specifies a maximum voltage rating of 5V, it's essential to note that the component can tolerate a maximum voltage of 5.5V for a short duration (less than 1 second). However, it's recommended to operate the component within the specified voltage range to ensure reliability and longevity.
ALZ11F05W is rated for operation up to 125°C. However, it's essential to consider the derating curve provided in the datasheet to ensure the component operates within its specified limits. Additionally, consult with Panasonic's technical support for specific guidance on using the component in high-temperature environments.
To ensure the reliability of ALZ11F05W in a humid environment, follow proper storage and handling procedures. Store the components in a dry, clean environment, and avoid exposing them to moisture. Consider using a moisture-proof coating or conformal coating on the PCB to protect the component from humidity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALZ11F05W Overview

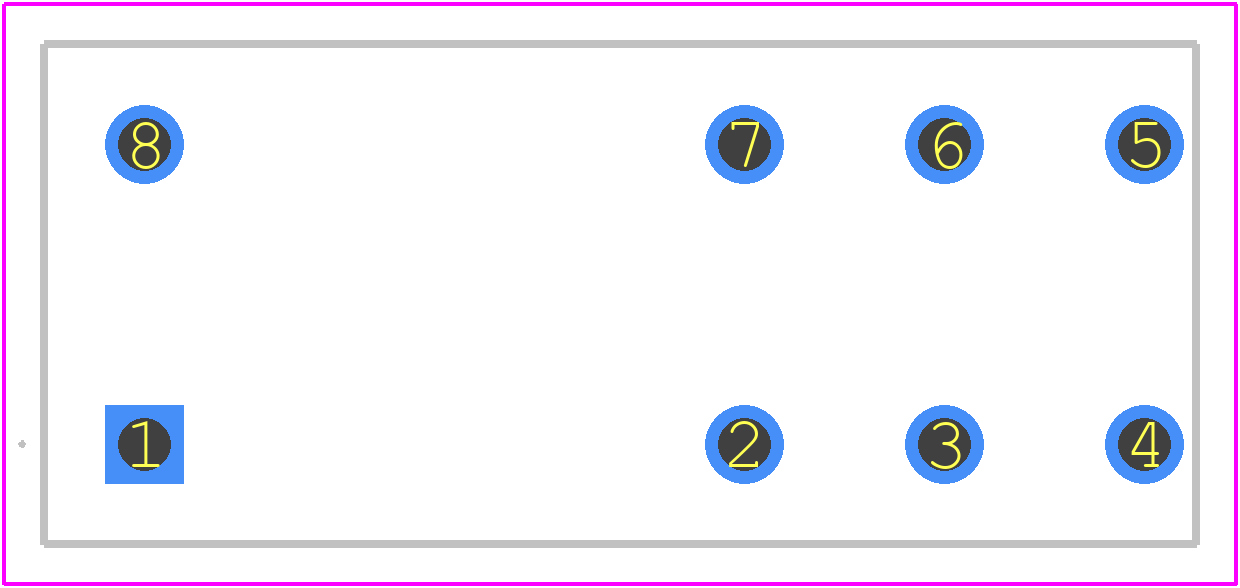

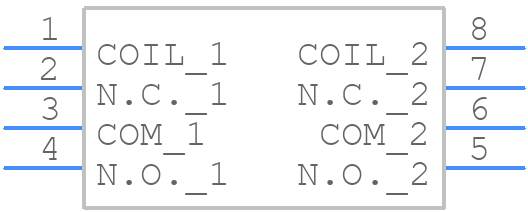

Use the download button to access the ALZ11F05W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALZ11,
or try a keyword search, such as Power/Signal Relays
