The recommended land pattern for the ALZ12F24 is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm. The pad should be centered on the component and have a non-solder mask defined (NSMD) pad shape.
The ALZ12F24 has a thermal resistance of 10°C/W. To handle thermal considerations, ensure good airflow around the component, use a heat sink if necessary, and avoid blocking the airflow around the component. Also, ensure that the PCB is designed to dissipate heat efficiently.
The recommended reflow profile for the ALZ12F24 is a peak temperature of 260°C, with a ramp-up rate of 3°C/s, a dwell time of 30-60 seconds, and a ramp-down rate of 6°C/s. The total reflow time should not exceed 300 seconds.
The ALZ12F24 is not suitable for use in humid environments. It is recommended to use the component in an environment with a relative humidity of 60% or less. If the component is exposed to high humidity, it may lead to corrosion or other reliability issues.
To ensure the reliability of the ALZ12F24 in high-temperature applications, ensure that the component is operated within its specified temperature range of -40°C to 125°C. Also, ensure that the component is properly soldered and that the PCB is designed to handle the thermal stresses.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ALZ12F24 Overview

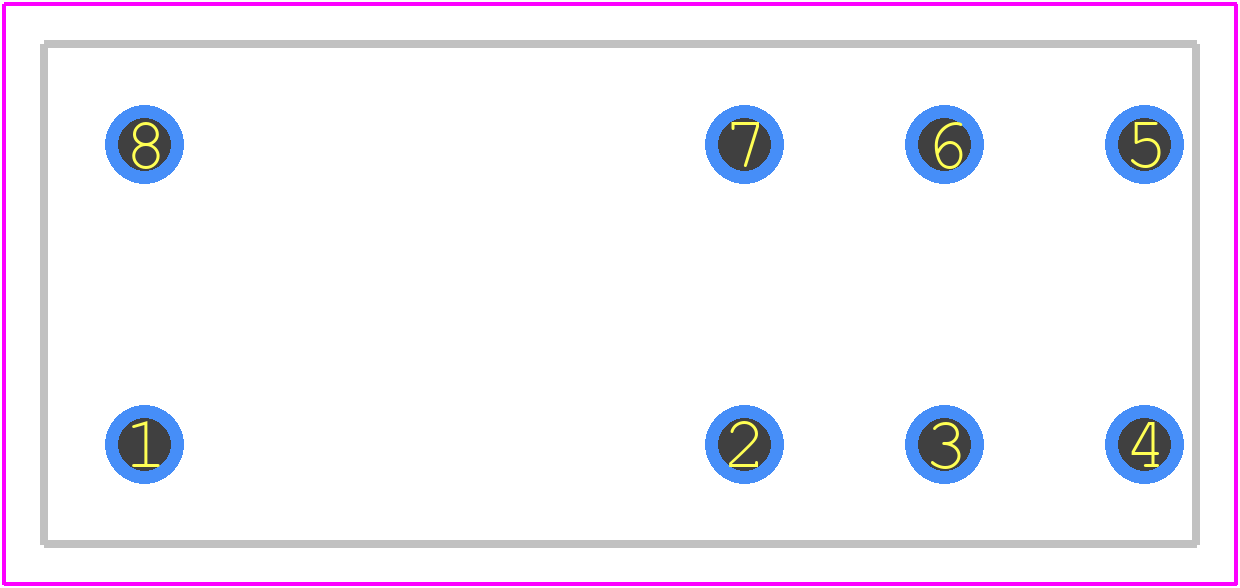

Use the download button to access the ALZ12F24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALZ12,
or try a keyword search, such as Power/Signal Relays
