Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
Use a soldering iron with a temperature range of 250°C to 260°C, and apply a solder flux to ensure good wetting. Avoid applying excessive force or vibration during soldering.
Although the datasheet specifies a maximum voltage of 24V, it's recommended to derate the voltage to 22V to ensure long-term reliability and prevent overheating.
Yes, but it's essential to apply a conformal coating to protect the device from moisture. Panasonic recommends using a coating that meets the IEC 60721-3-3 standard.
Use a multimeter to measure voltage and current at the input and output pins. Check for signs of overheating, such as discoloration or deformation. Consult Panasonic's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALZ52B24W Overview

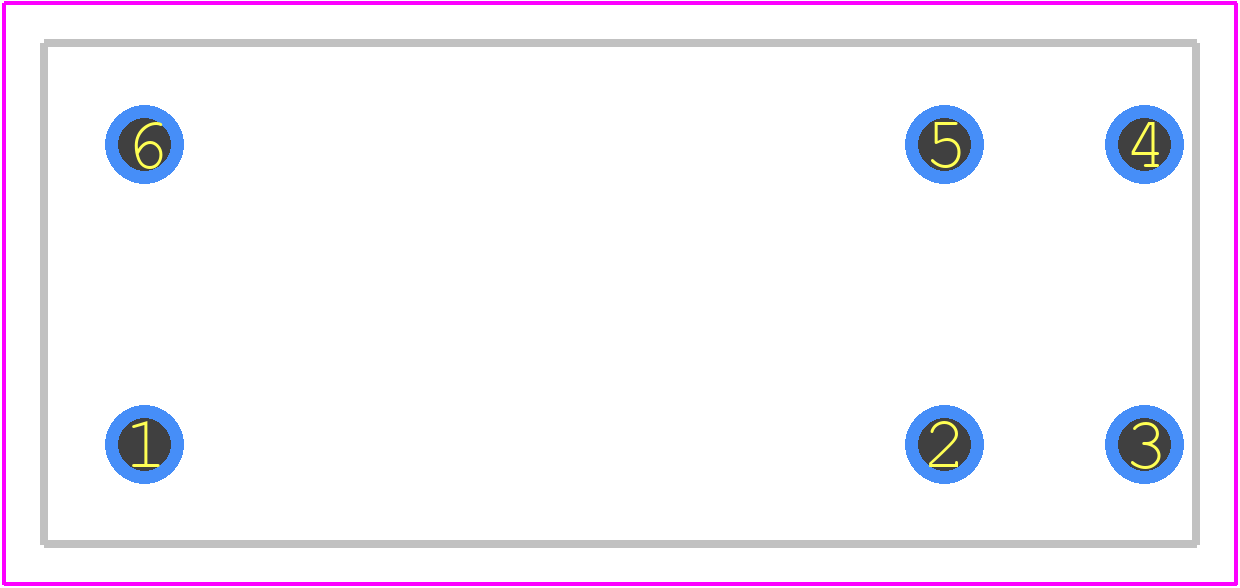

Use the download button to access the ALZ52B24W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALZ52,
or try a keyword search, such as Power/Signal Relays
