Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, reduce thermal resistance, and prevent soldering issues.
Proper thermal management is crucial for the ALZN1B05W. Ensure good airflow, use a heat sink if necessary, and follow Panasonic's recommended thermal interface material and thermal resistance guidelines to keep the junction temperature within the specified range.
While the datasheet specifies the maximum voltage rating, it's essential to derate the voltage based on the operating conditions. As a general rule, derate the voltage by 10-20% to ensure reliable operation and prevent premature failure.
The ALZN1B05W is not designed for high-humidity environments. If your application requires operation in humid conditions, consider using a moisture-resistant coating or conformal coating to protect the device. However, this may still not guarantee reliable operation, and you should consult with Panasonic or a qualified engineer for guidance.
Follow Panasonic's recommended storage and handling procedures to prevent damage and ensure the device's reliability. Store the devices in their original packaging, avoid exposure to moisture, and handle them with anti-static precautions to prevent ESD damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ALZN1B05W Overview

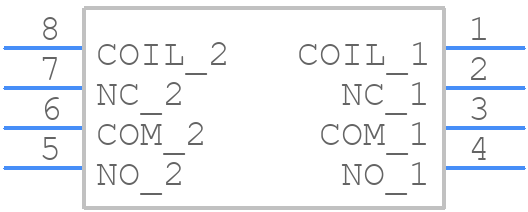

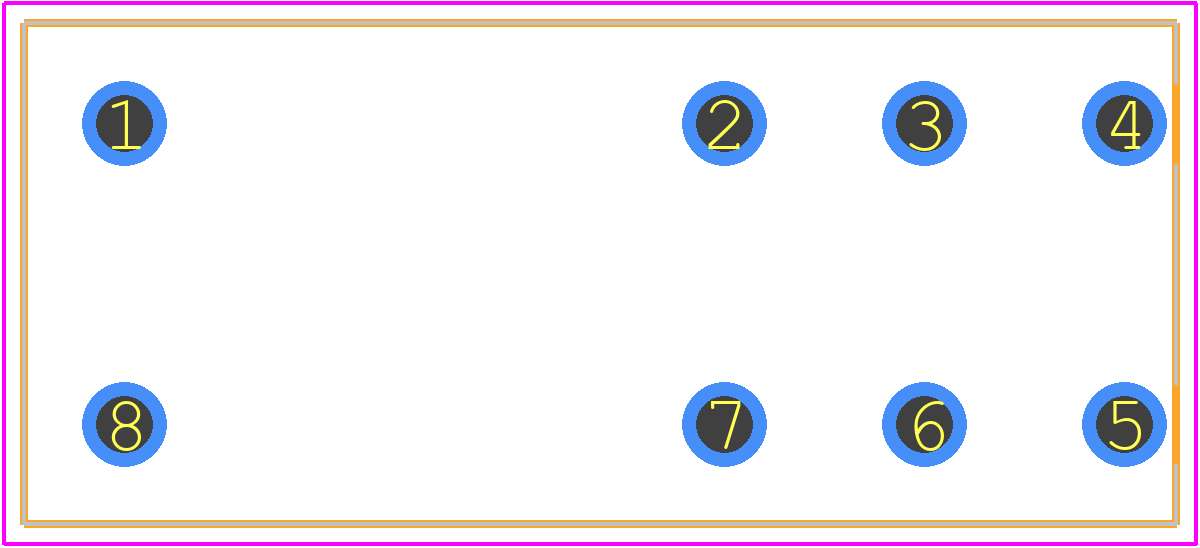

Use the download button to access the ALZN1B05W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ALZN1,
or try a keyword search, such as Power/Signal Relays
