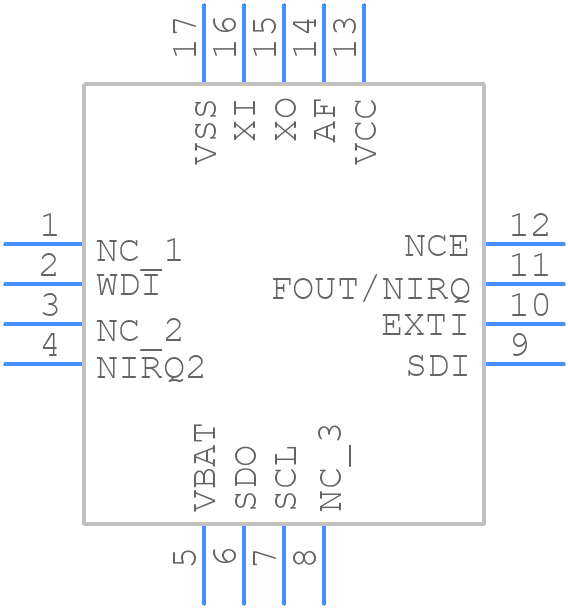

AM0815AQ footprint, schematic symbol and 3D model by Ambiq Micro, Inc.

Symbol

PCB Footprints

3D Models

AM0815AQ Details

Ambiq Micro provides a recommended PCB layout guide in their application note AN-001, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To optimize power consumption, use the lowest possible clock frequency, disable unused peripherals, and use the power-saving modes (e.g., sleep, hibernate) when the device is not in use. Additionally, optimize the firmware to minimize switching activity and use the lowest possible voltage supply.
The AM0815AQ is rated for operation from -40°C to 85°C, but it's recommended to operate within the -20°C to 70°C range for optimal performance and reliability.
To ensure EMC, follow the guidelines in the datasheet and application notes for PCB layout, component selection, and shielding. Additionally, use a metal shield or a Faraday cage to enclose the device, and ensure that all cables and connectors are properly shielded and filtered.
Ambiq Micro recommends using a 32.768 kHz crystal oscillator with a load capacitance of 6-10 pF and a series resistance of 500-1000 ohms. The crystal oscillator should be placed close to the AM0815AQ and connected to the XTAL pins.

Expert Contribution

System Verified

Community Approved

Use the download button to access the AM0815AQ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AM081, or try a keyword search, such as Timers or RTCs
