- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AM1065
- Part Number AM1065
- Manufacturer ATLANTA
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - AM1065-4
- Released Date May 25, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AM1065 Details
-
Manufacturer Part Number:
AM1065
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
QFN-24
-
Manufacturer:
Atlanta Micro
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
20 dB
-
Input Power-Max (CW):
25 dBm
-
Operating Frequency-Max:
8000 MHz
-
Operating Temperature-Max:
85 °C
AM1065 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
-
Apply a DC bias voltage of 2.5V to the VREF pin, and ensure the input signal is centered around this voltage. This will provide optimal linearity and minimize distortion.
-
The maximum input signal amplitude is approximately 2.2Vpp before clipping occurs. Exceeding this may result in distortion and reduced performance.
-
Use a low-pass filter at the input, keep the input and output traces short and shielded, and ensure a solid ground plane. Additionally, use a decoupling capacitor (e.g., 10nF) between VCC and GND to reduce power supply noise.
-
The recommended operating temperature range is -40°C to 85°C. Operating outside this range may affect performance and reliability.
Trust Checks
Expert Contribution
System Verified
Community Approved
AM1065 Overview

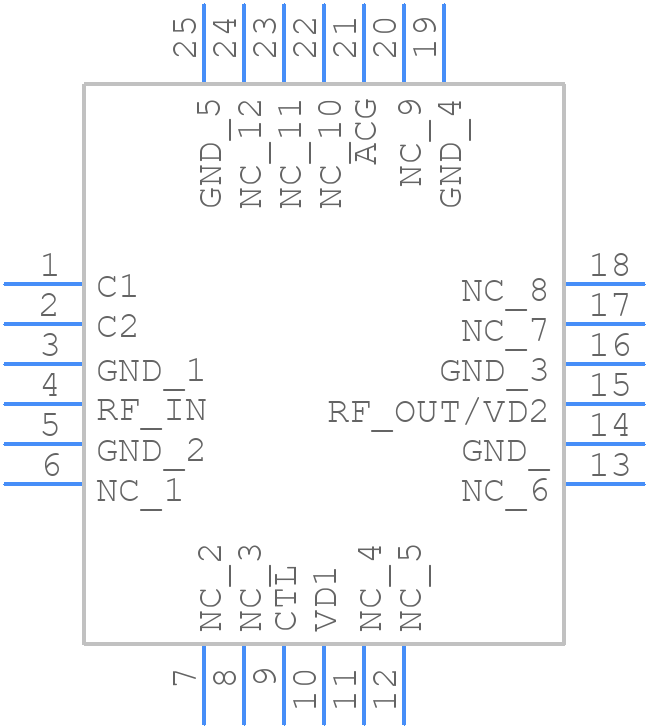

Use the download button to access the AM1065 schematic symbol and PCB footprint.
