Aimtec recommends a PCB layout with a solid ground plane, minimal thermal resistance, and adequate copper thickness. A thermal pad on the bottom of the module can be connected to a heat sink or a thermal interface material to improve heat dissipation.
To ensure reliability and longevity, operate the module within the recommended temperature range, avoid thermal shocks, and provide adequate cooling. Also, follow proper storage and handling procedures to prevent damage from moisture, mechanical stress, and electrostatic discharge.
Aimtec recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The capacitor selection should be based on the specific application's requirements and operating conditions.
Yes, the AM10CW-2415S-NZ can be used in redundant or parallel configurations, but it's essential to follow Aimtec's guidelines and recommendations for proper implementation, including synchronization, current sharing, and fault detection.
The AM10CW-2415S-NZ is designed to withstand input voltage transients and brownouts within the specified range. However, it's recommended to add external protection circuits, such as TVS diodes or voltage regulators, to ensure the module's reliability and prevent damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM10CW-2415S-NZ Overview

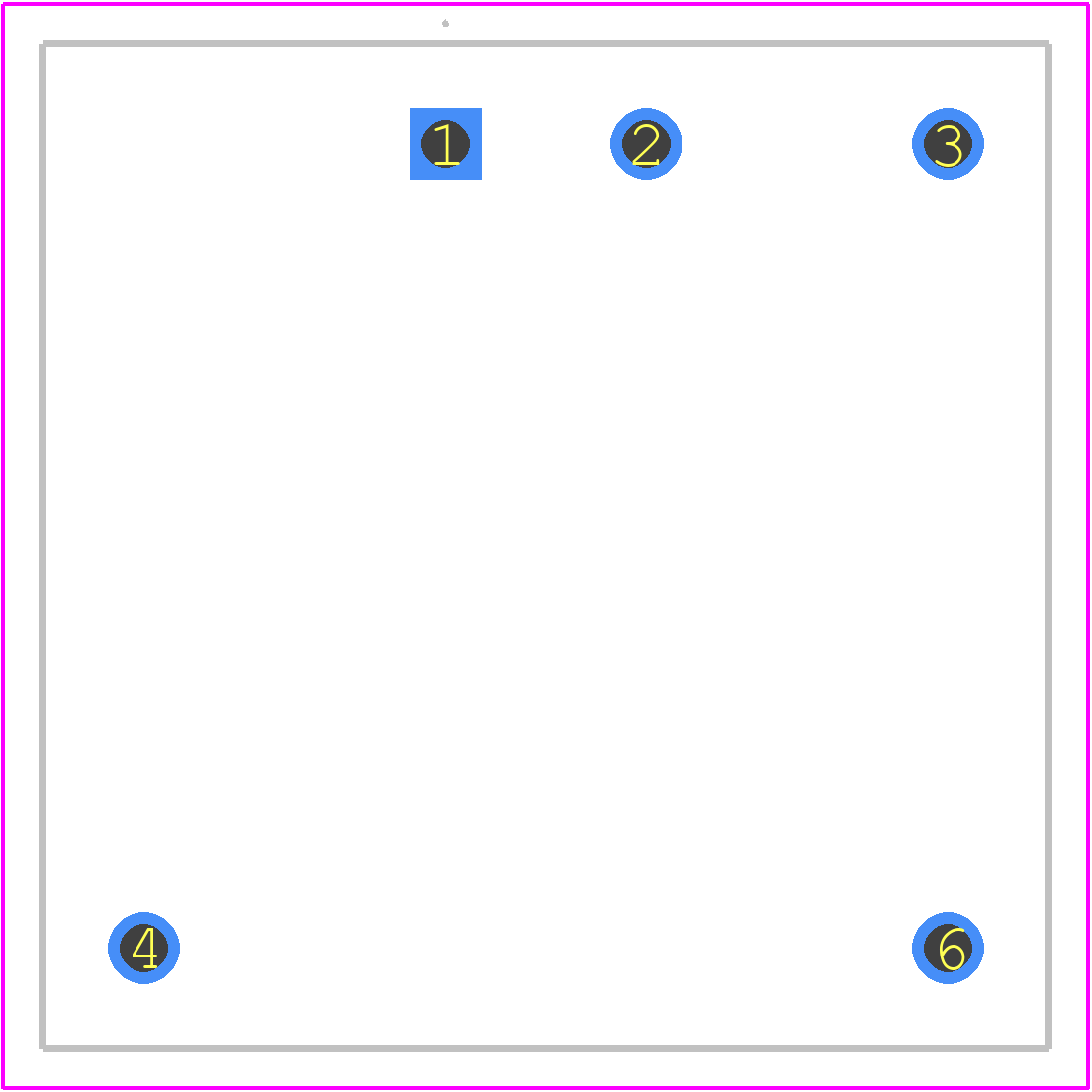

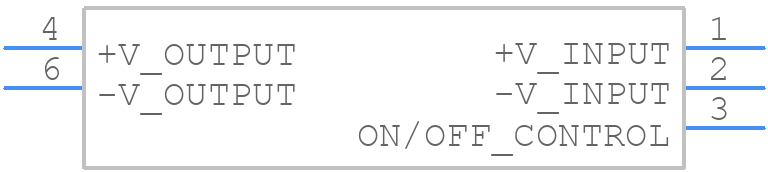

Use the download button to access the AM10CW-2415S-NZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM10C,
or try a keyword search, such as Power Supply Modules
