Aimtec recommends a PCB layout with a solid ground plane, wide traces for power lines, and a thermal pad for heat dissipation. A thermal management plan should include a heat sink or a metal core PCB to keep the junction temperature below 125°C.
To ensure reliability and longevity, operate the module within the recommended temperature range, avoid thermal shocks, and ensure proper cooling. Also, follow the recommended derating curves for output power and input voltage to prevent overheating.
The AM10CW-4805S-FZ is designed to meet CISPR 22 Class B and EN 55022 Class B EMI standards. To ensure EMC compliance, use a metal enclosure, add EMI filters if necessary, and follow proper PCB layout and grounding techniques.
Yes, the AM10CW-4805S-FZ can be used in redundant or parallel configurations, but it's essential to follow Aimtec's guidelines for synchronization, current sharing, and fault detection to ensure reliable operation.
The AM10CW-4805S-FZ has a built-in undervoltage lockout (UVLO) that shuts down the module during input voltage brownout or dropout. The module will automatically restart when the input voltage returns to a safe operating level.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM10CW-4805S-FZ Overview

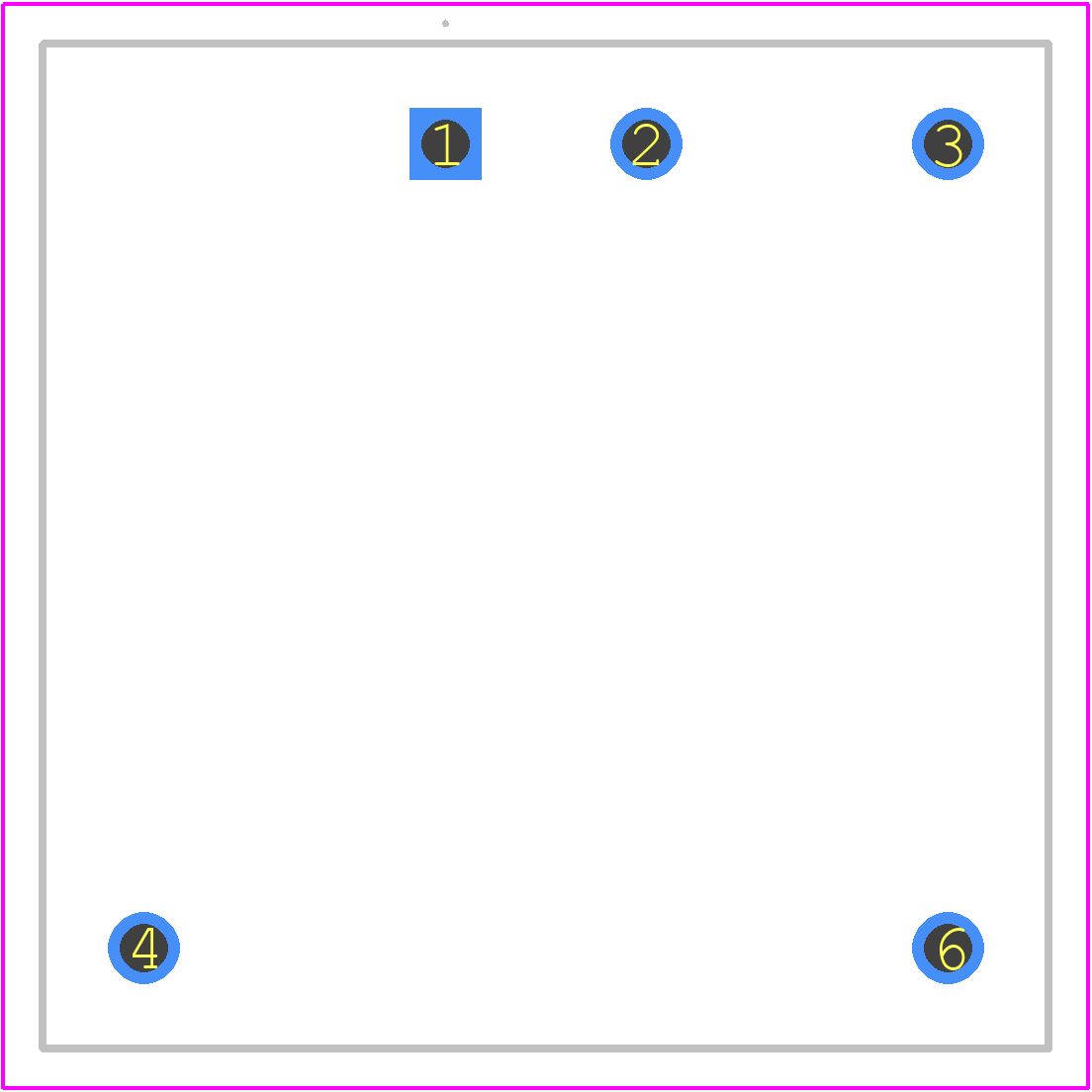

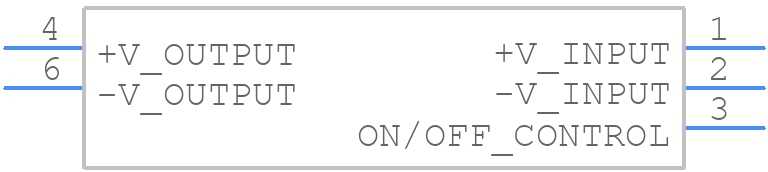

Use the download button to access the AM10CW-4805S-FZ schematic symbol, PCB footprint, and 3D model.
