Aimtec recommends a PCB layout with a solid ground plane, minimal thermal resistance, and a heat sink with a thermal resistance of 10°C/W or less. A thermal pad on the bottom of the module can also be used to improve heat dissipation.
To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to +85°C), avoid thermal shocks, and follow proper storage and handling procedures. Additionally, consider using a conformal coating to protect the module from moisture and contaminants.
The AM1D-0505DH52Z is designed to meet CISPR 22 Class B emissions standards. To minimize EMI and RFI, use a shielded enclosure, keep the module away from sensitive circuits, and follow proper PCB layout and grounding practices.
Yes, the AM1D-0505DH52Z can be used in redundant or parallel configurations. However, consult with Aimtec's application engineers to ensure proper design and implementation, as well as to discuss any necessary certifications or compliance requirements.
The AM1D-0505DH52Z has built-in surge protection up to 2 kV (IEC 61000-4-5) and overvoltage protection up to 60 V. However, additional external protection may be required depending on the specific application and environmental conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM1D-0505DH52Z Overview

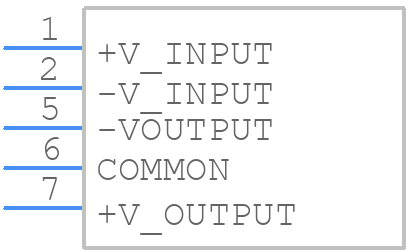

Use the download button to access the AM1D-0505DH52Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM1D-,
or try a keyword search, such as Power Supply Modules
