AM1D-0512DZ - aimtec

Description: Module DC-DC 5VIN 2-OUT 12V/-12V 0.042A/-0.042A 1W 5-Pin SIP Bulk

Download AM1D-0512DZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

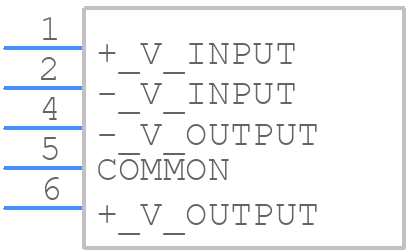

Symbol
AM1D-0512DZ - aimtec - PCB symbol
click to zoom
PCB Footprints
AM1D-0512DZ - aimtec PCB footprint - Other - Other - AM1D-0512DZ-1
click to zoom
3D Models
AM1D-0512DZ - aimtec - 3D model - Other - AM1D-0512DZ-1
click to zoom

AM1D-0512DZ Details

  • Manufacturer Part Number:

    AM1D-0512DZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-7/6

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Aimtec

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PSMA-T6

  • Length:

    19.5 mm

  • Load Regulation-Max:

    10%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.36 V

  • Output Voltage-Min:

    11.64 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    6 mm

AM1D-0512DZ Frequently Asked Questions (FAQs)

  • Aimtec recommends a PCB layout with a solid ground plane, minimal thermal resistance, and a heat sink attached to the module's thermal pad. A thermal interface material (TIM) with a thermal conductivity of 1-2 W/m-K is also recommended.
  • To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to +85°C), avoid thermal shocks, and follow proper storage and handling procedures. Additionally, consider using a conformal coating to protect the module from moisture and contaminants.
  • The maximum allowable capacitance for the output filter capacitor is 10uF. Exceeding this value may cause instability or oscillation in the converter.
  • Yes, the AM1D-0512DZ can be used in a redundant or parallel configuration, but it's essential to follow proper design guidelines and ensure that the modules are synchronized and properly connected to avoid instability or damage.
  • Aimtec recommends using a fuse with a rating of 1-2A, slow-blow type, to protect the module from input overcurrent conditions.
