AM1D-1212DZ - aimtec

Description: DC DC CONVERTER 12V -12V 1W

Download AM1D-1212DZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

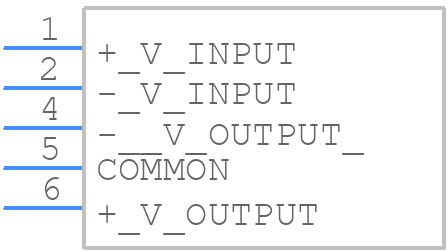

AM1D-1212DZ - aimtec - PCB symbol
click to zoom
PCB Footprints
AM1D-1212DZ - aimtec PCB footprint - Other - Other - AM1D-1212DZ-1
click to zoom
3D Models
AM1D-1212DZ - aimtec - 3D model - Other - AM1D-1212DZ-1
click to zoom

AM1D-1212DZ Details

  • Manufacturer Part Number:

    AM1D-1212DZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-7/6

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Aimtec

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PSMA-T6

  • Length:

    19.5 mm

  • Load Regulation-Max:

    10%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.36 V

  • Output Voltage-Min:

    11.64 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    1 W

  • Trim/Adjustable Output:

    NO

  • Width:

    6 mm

AM1D-1212DZ Frequently Asked Questions (FAQs)

  • Aimtec recommends a 2-layer PCB with a solid ground plane on the bottom layer, and a thermal pad on the top layer connected to a heat sink or a thermal interface material. Ensure a minimum of 1 oz copper thickness and a 1.5 mm clearance around the module.
  • Aimtec recommends operating the module within the specified temperature range (-40°C to +85°C). Ensure proper thermal management, avoid overheating, and use a suitable thermal interface material to reduce thermal resistance.
  • Aimtec recommends keeping the input voltage within ±10% of the nominal 12V input (10.8V to 13.2V) to ensure stable operation and prevent damage to the module.
  • Yes, the AM1D-1212DZ can be used in redundant or parallel configurations, but ensure proper synchronization and isolation between modules to prevent damage or instability.
  • The typical efficiency of the AM1D-1212DZ is around 85-90% at 25°C and 50% load. Efficiency may vary depending on the load and temperature conditions. Consult Aimtec's application notes for more information.
