AM1D-1215DZ footprint, schematic symbol and 3D model by aimtec

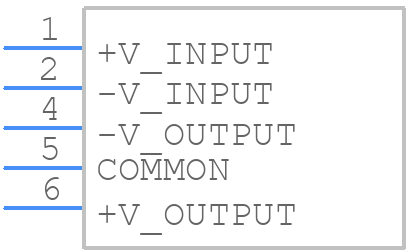

Symbol

click to zoom

PCB Footprints

AM1D-1215DZ - aimtec PCB footprint - Other - Other - 7-SIP

click to zoom

3D Models

AM1D-1215DZ - aimtec - 3D model - Other - 7-SIP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AM1D-1215DZ
Part Number AM1D-1215DZ
Manufacturer aimtec
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - 7-SIP
Released Date Feb 24, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AM1D-1215DZ Details

Manufacturer Part Number:
AM1D-1215DZ
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SIP-7/6
Country Of Origin:
Taiwan
ECCN Code:
EAR99
Factory Lead Time:
9 Weeks
Manufacturer:
Aimtec
YTEOL:
5
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
13.2 V
Input Voltage-Min:
10.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PSMA-T6
Length:
19.5 mm
Load Regulation-Max:
10%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15.45 V
Output Voltage-Min:
14.55 V
Output Voltage-Nom:
15 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
1 W
Trim/Adjustable Output:
NO
Width:
6 mm

AM1D-1215DZ Frequently Asked Questions (FAQs)

Aimtec recommends a 2-layer PCB with a solid ground plane on the bottom layer, and a thermal pad on the top layer connected to the heat sink. Ensure good airflow and a heat sink with a thermal resistance of 10°C/W or lower.
Follow the recommended operating conditions, ensure proper thermal management, and avoid exceeding the maximum ratings. Also, implement adequate input and output filtering, and consider adding overvoltage and undervoltage protection.
The maximum output capacitance is 220uF. Exceeding this value may cause instability or oscillation. It's recommended to use a capacitor with a low ESR (Equivalent Series Resistance) and a voltage rating of at least 1.5 times the output voltage.
The AM1D-1215DZ is rated for operation up to 85°C. However, derating is required for temperatures above 70°C. Consult the datasheet for derating curves and ensure proper thermal management to maintain reliability.
Check the input voltage, output voltage, and current. Verify the PCB layout and thermal management. Use an oscilloscope to check for oscillations or noise. Consult the datasheet and application notes for troubleshooting guidelines.
