Part Image

AM27C2048-120JC - AMD

Description: Fast access time — Speed options as fast as 55 ns ■ Low power consumption — 100 µA maximum CMOS standby current

Download AM27C2048-120JC Model

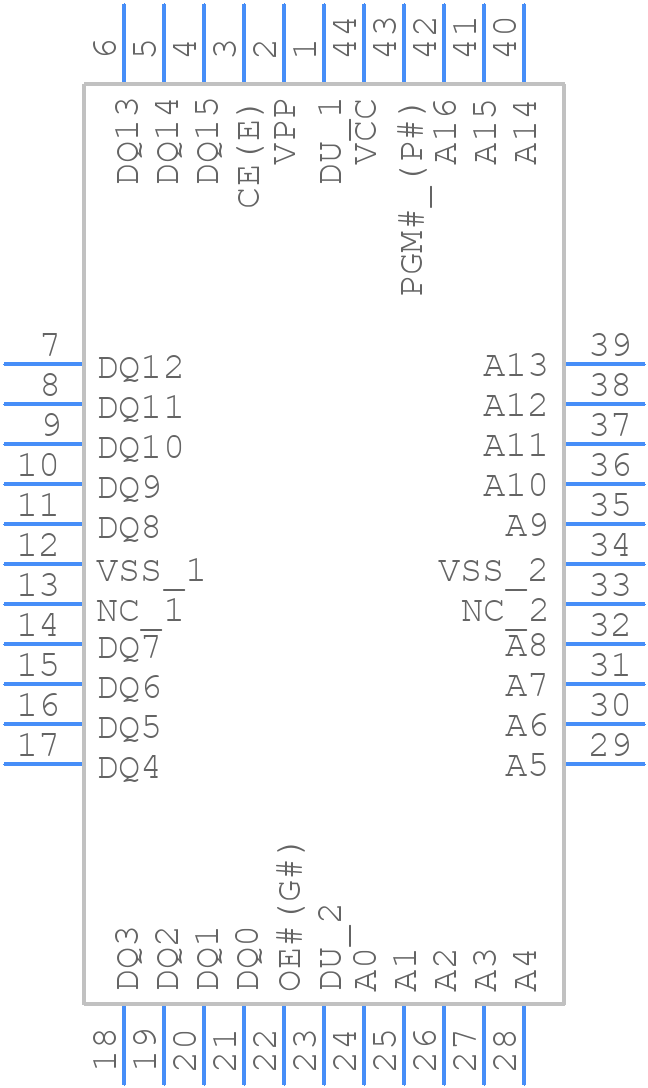

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AM27C2048-120JC - AMD PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - PL 044—44-Pin Plastic Leaded Chip Carrier
click to zoom

AM27C2048-120JC Details

  • Manufacturer Part Number:

    AM27C2048-120JC

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LCC

  • Package Description:

    QCCJ, LDCC44,.7SQ

  • Pin Count:

    44

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    AMD

  • YTEOL:

    0

  • Access Time-Max:

    120 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-PQCC-J44

  • JESD-609 Code:

    e0

  • Memory Density:

    2097152 bit

  • Memory IC Type:

    OTP ROM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    128KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC44,.7SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM27C2048-120JC Overview

Use the download button to access the AM27C2048-120JC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AM27C, or try a keyword search, such as OTP ROMs

Parts related to AM27C2048-120JC

Showing 0 results

AM27C2048-120JC Alternates

Showing results

Image Part Number Model
Part Image M5M27C202J-12 Mitsubishi Electric

OTP ROM, 128KX16, 120ns, CMOS, PQCC44, 0.650 X 0.650 INCH, PLASTIC, MO-047AC, LCC-44

Part Image AT27C2048-12JC Atmel Corporation

OTP ROM, 128KX16, 120ns, CMOS, PQCC44, PLASTIC, MS-018AC, LCC-44

Part Image IS27C2048-12PL Integrated Silicon Solution Inc

OTP ROM, 128KX16, 120ns, CMOS, PQCC44, PLASTIC, LCC-44
