AM28F256-120PC - Spansion

AM28F256-120PC Details

• Manufacturer Part Number:

  AM28F256-120PC

• Part Life Cycle Code:

  Obsolete

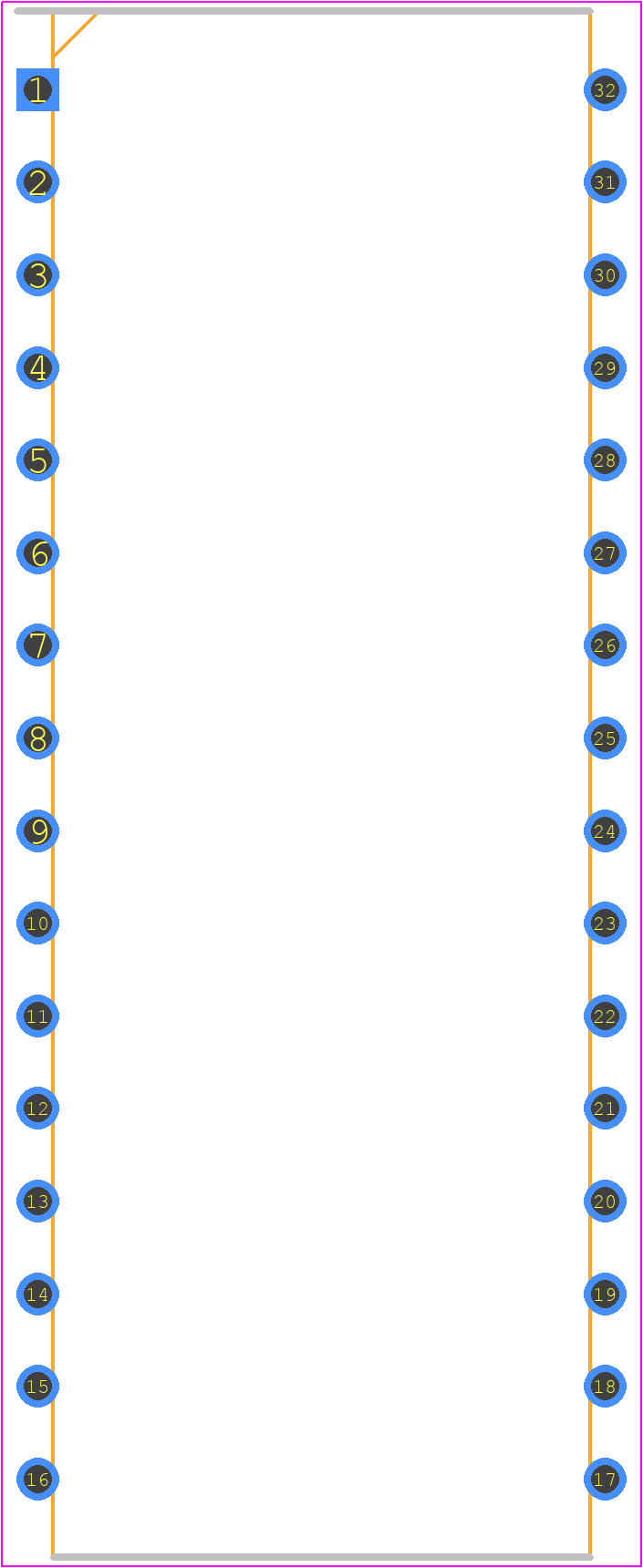

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-32

• Pin Count:

  32

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Spansion

• YTEOL:

  0

• Access Time-Max:

  120 ns

• JESD-30 Code:

  R-PDIP-T32

• Length:

  42 mm

• Memory Density:

  262144 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Terminals:

  32

• Number of Words:

  32768 words

• Number of Words Code:

  32000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  32KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  12 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.7 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Type:

  NOR TYPE

• Width:

  15.24 mm
