AM29F010B-70JF - Infineon

Description: FLASH MEMORY, 1MBIT, 70NS, 32-PLCC; Flash Memory Type:Parallel NOR; Memory Size:1Mbit; Flash Memory Configuration:128K x 8bit; IC Interface Type:CFI, Parallel; Memory Case Style:LCC; No. of Pins:32Pins; Clock Frequency:- RoHS Compliant: Yes

Download AM29F010B-70JF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AM29F010B-70JF model

Email notifications will be applied after download.

Send part feedback

Symbol

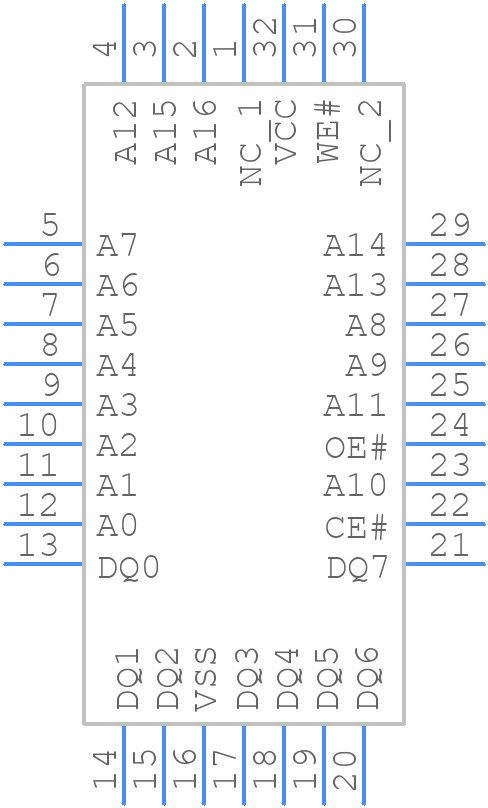

AM29F010B-70JF - Infineon - PCB symbol

PCB Footprints

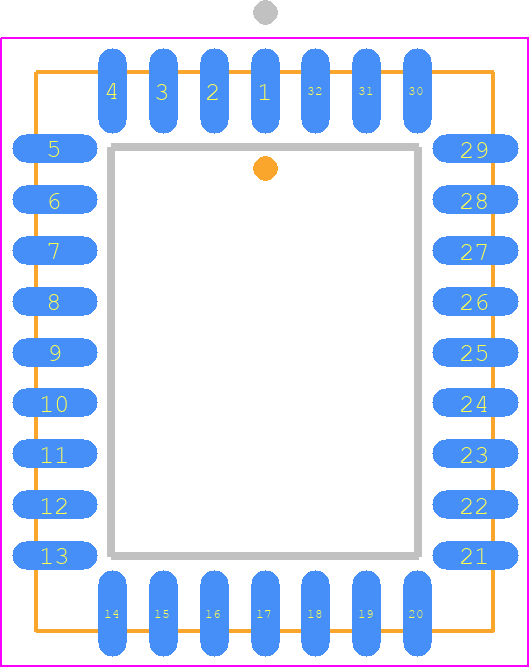

AM29F010B-70JF - Infineon PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 32pin plcc

Datasheet Download Datasheet
Stock & Prices Price & Stock for AM29F010B-70JF
Part Number AM29F010B-70JF
Manufacturer Infineon
Pin Count 32
Part Category Integrated Circuit
Package Category Plastic Leaded Chip Carrier
Footprint Name Plastic Leaded Chip Carrier - 32pin plcc
Released Date Feb 26, 2020
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

AM29F010B-70JF Details

Manufacturer Part Number:
AM29F010B-70JF
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

AM29F010B-70JF Overview

Use the download button to access the AM29F010B-70JF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AM29F, or try a keyword search, such as Flash Memories
