AM29F010B-70PK - Spansion

AM29F010B-70PK Details

• Manufacturer Part Number:

  AM29F010B-70PK

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

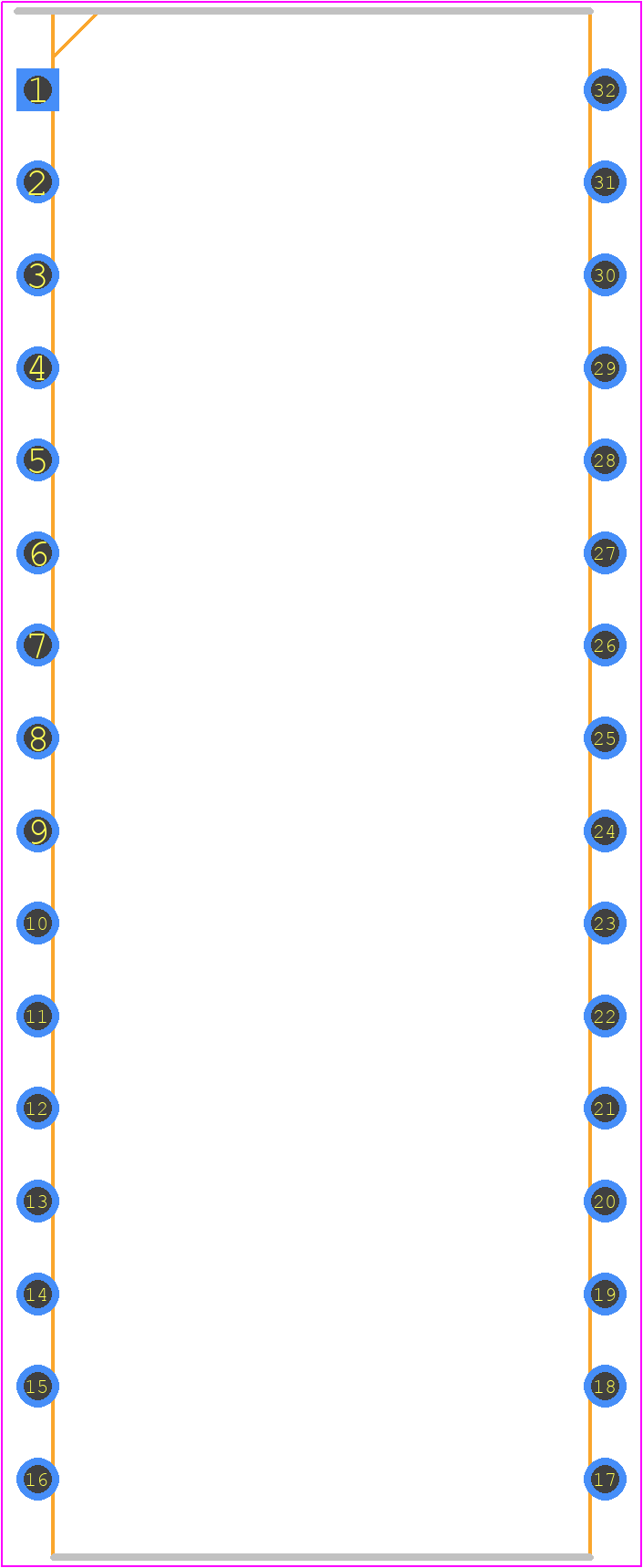

• Package Description:

  LEAD FREE, PLASTIC, MO-015GAP, DIP-32

• Pin Count:

  32

• ECCN Code:

  3A001.a.2.c

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Spansion

• YTEOL:

  0

• Access Time-Max:

  70 ns

• Command User Interface:

  YES

• Data Polling:

  YES

• Endurance:

  1000000 Write/Erase Cycles

• JESD-30 Code:

  R-PDIP-T32

• JESD-609 Code:

  e3

• Length:

  42.037 mm

• Memory Density:

  1048576 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Sectors/Size:

  8

• Number of Terminals:

  32

• Number of Words:

  131072 words

• Number of Words Code:

  128000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  128KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP32,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Programming Voltage:

  5 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.715 mm

• Sector Size:

  16K

• Standby Current-Max:

  0.000005 A

• Supply Current-Max:

  0.04 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  15.24 mm
