100K WRITE/ERASE CYCLES MIN; CONFIGURABLE AS 256K X 16
Alternate Memory Width:
8
Boot Block:
TOP
Command User Interface:
YES
Data Polling:
YES
Endurance:
100000 Write/Erase Cycles
JESD-30 Code:
R-PDSO-G44
JESD-609 Code:
e0
Length:
28.2 mm
Memory Density:
4194304 bit
Memory IC Type:
FLASH
Memory Width:
8
Number of Functions:
1
Number of Sectors/Size:
1,2,1,7
Number of Terminals:
44
Number of Words:
524288 words
Number of Words Code:
512000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
70 °C
Organization:
512KX8
Output Characteristics:
3-STATE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP44,.63
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Parallel/Serial:
PARALLEL
Programming Voltage:
5 V
Qualification Status:
Not Qualified
Ready/Busy:
YES
Seated Height-Max:
2.8 mm
Sector Size:
16K,8K,32K,64K
Standby Current-Max:
0.000005 A
Supply Current-Max:
0.05 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Toggle Bit:
YES
Type:
NOR TYPE
Width:
13.3 mm
AM29F400AT-90SC Frequently Asked Questions (FAQs)
The AM29F400AT-90SC has an operating temperature range of 0°C to 70°C, and an extended temperature range of -40°C to 85°C for industrial applications.
The device requires a controlled power-up sequence to ensure proper operation. The VCC supply should be ramped up slowly (typically 10-20 ms) to prevent latch-up. During power-down, the CE# and OE# pins should be driven high to prevent unwanted writes or reads.
The AM29F400AT-90SC has a minimum erase and program cycle endurance of 100,000 cycles, with a typical value of 200,000 cycles. However, this can vary depending on the specific application and usage patterns.
The device has a sector protection feature that allows specific sectors to be protected from program or erase operations. Additionally, the device has a security feature that allows a sector to be permanently locked to prevent any further changes. Refer to the datasheet for specific commands and procedures to use these features.
The device uses a standard asynchronous interface with CE#, OE#, and WE# control signals. Refer to the datasheet for specific command sequences and protocols for reading, writing, and erasing data, as well as for handling device status and error conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM29F400AT-90SC Overview

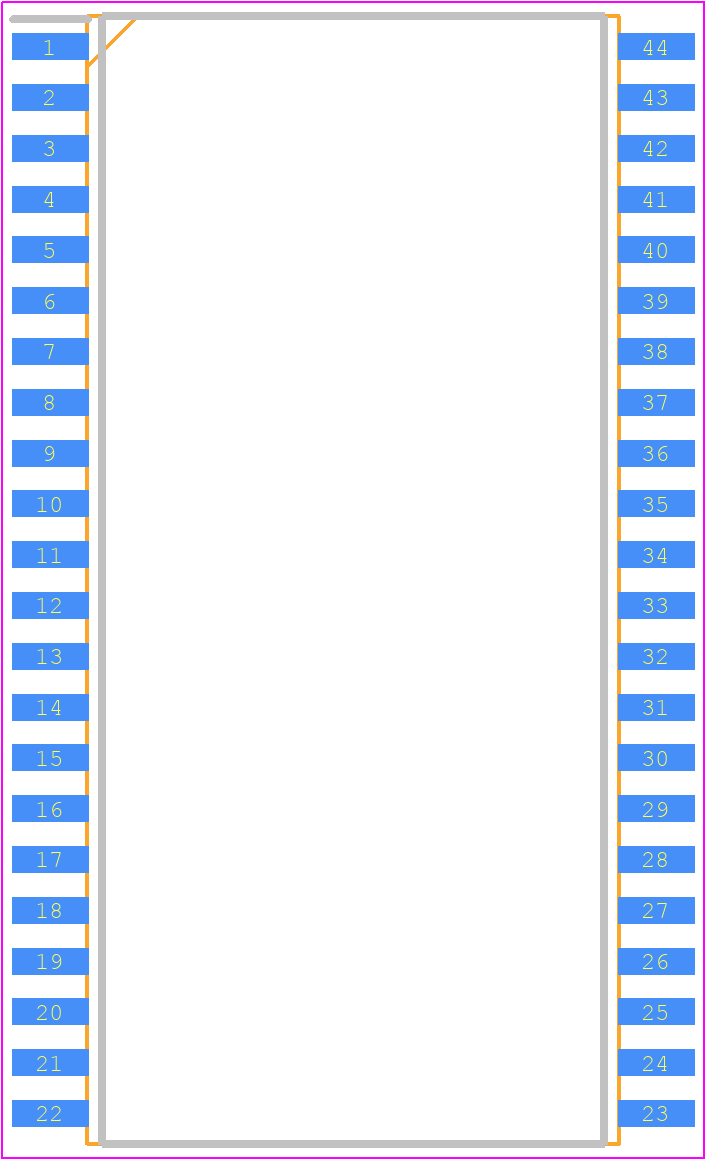

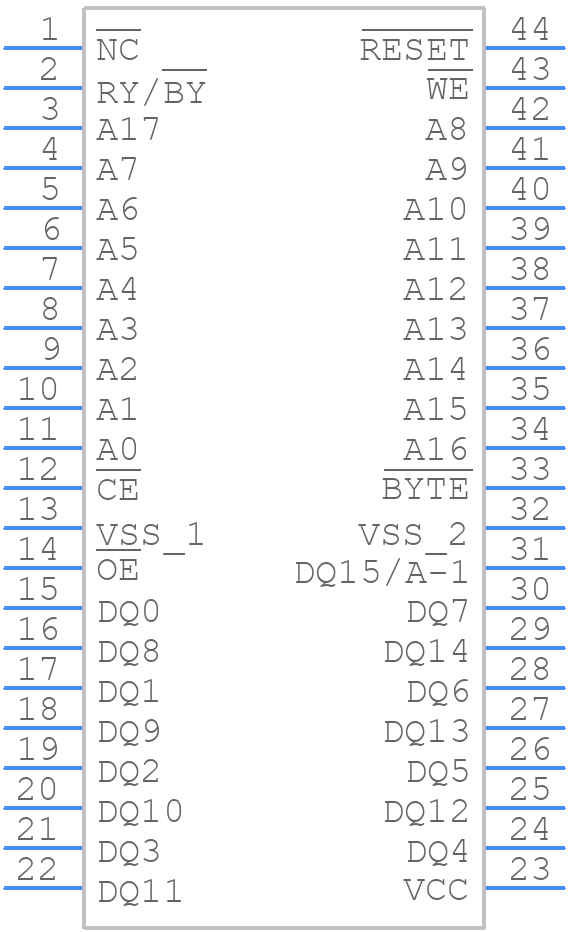

Use the download button to access the AM29F400AT-90SC schematic symbol, PCB footprint, and 3D model.
