AM29F400BT-70SE - AMD

AM29F400BT-70SE Details

• Manufacturer Part Number:

  AM29F400BT-70SE

• Part Life Cycle Code:

  Transferred

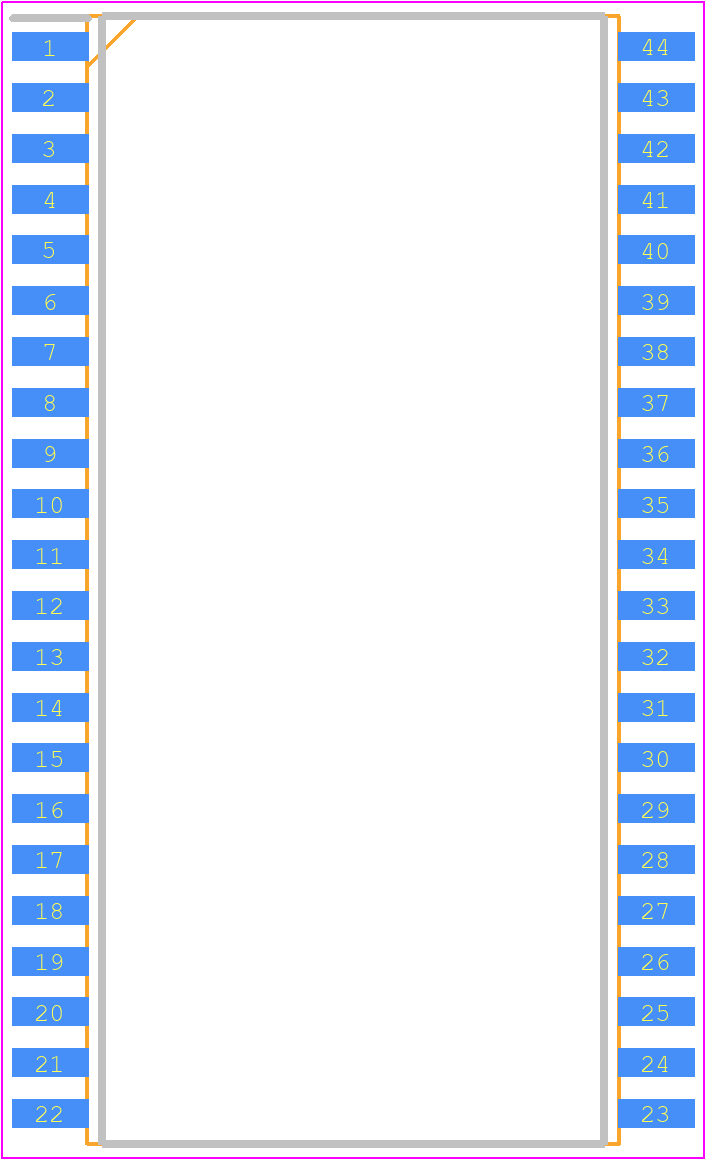

• Part Package Code:

  SOIC

• Package Description:

  MO-180AA, SOP-44

• Pin Count:

  44

• ECCN Code:

  3A001.a.2.c

• HTS Code:

  8542.32.00.51

• Manufacturer:

  AMD

• Access Time-Max:

  70 ns

• Additional Feature:

  MINIMUM 1000K PROGRAM/ERASE CYCLE ;20 YEAR DATA RETENTION

• Alternate Memory Width:

  8

• Boot Block:

  TOP

• Command User Interface:

  YES

• Data Polling:

  YES

• Data Retention Time-Min:

  20

• Endurance:

  1000000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G44

• JESD-609 Code:

  e0

• Length:

  28.2 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  FLASH

• Memory Width:

  16

• Number of Functions:

  1

• Number of Sectors/Size:

  1,2,1,7

• Number of Terminals:

  44

• Number of Words:

  262144 words

• Number of Words Code:

  256000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Organization:

  256KX16

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP44,.63

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  5 V

• Qualification Status:

  Not Qualified

• Ready/Busy:

  YES

• Seated Height-Max:

  2.8 mm

• Sector Size:

  16K,8K,32K,64K

• Standby Current-Max:

  0.000005 A

• Supply Current-Max:

  0.06 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  MILITARY

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  13.3 mm
