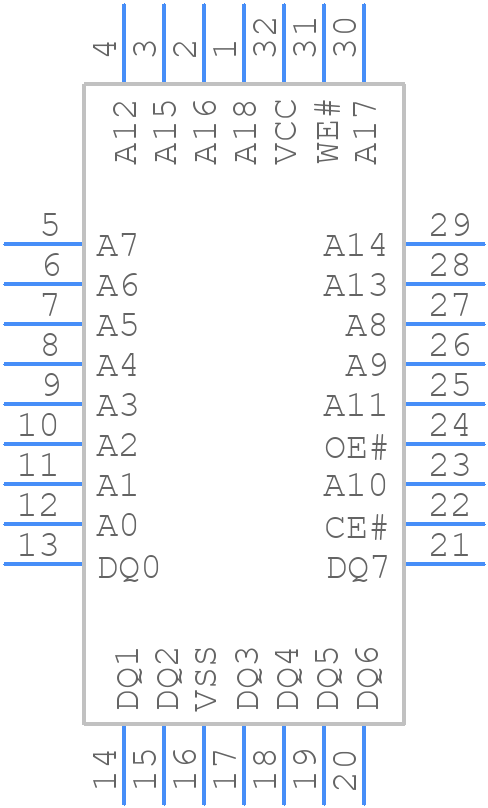

AM29LV040B-70JC - Spansion

AM29LV040B-70JC Details

• Manufacturer Part Number:

  AM29LV040B-70JC

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  LCC

• Package Description:

  PLASTIC, MO-052AE, LCC-32

• Pin Count:

  32

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Spansion

• YTEOL:

  0

• Access Time-Max:

  70 ns

• Command User Interface:

  YES

• Data Polling:

  YES

• Endurance:

  1000000 Write/Erase Cycles

• JESD-30 Code:

  R-PQCC-J32

• JESD-609 Code:

  e0

• Length:

  13.97 mm

• Memory Density:

  4194304 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Sectors/Size:

  8

• Number of Terminals:

  32

• Number of Words:

  524288 words

• Number of Words Code:

  512000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  512KX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC32,.5X.6

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Programming Voltage:

  3 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.556 mm

• Sector Size:

  64K

• Standby Current-Max:

  0.000005 A

• Supply Current-Max:

  0.03 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  11.43 mm
