AM2D-1205SZ footprint, schematic symbol and 3D model by aimtec

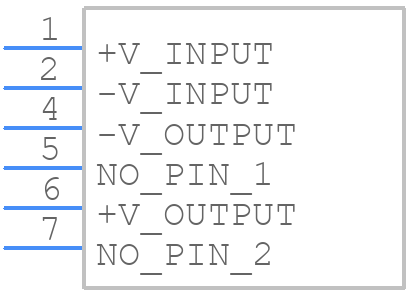

Symbol

click to zoom

PCB Footprints

AM2D-1205SZ - aimtec PCB footprint - Other - Other - AM2D-1205SZ

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AM2D-1205SZ
Part Number AM2D-1205SZ
Manufacturer aimtec
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - AM2D-1205SZ
Released Date Aug 30, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AM2D-1205SZ Details

Manufacturer Part Number:
AM2D-1205SZ
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SIP-7/6
Country Of Origin:
Taiwan
ECCN Code:
EAR99
Factory Lead Time:
9 Weeks
Manufacturer:
Aimtec
YTEOL:
6
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
13.2 V
Input Voltage-Min:
10.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PSMA-T6
Length:
19.5 mm
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
5.15 V
Output Voltage-Min:
4.85 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
2 W
Trim/Adjustable Output:
NO
Width:
6 mm

AM2D-1205SZ Frequently Asked Questions (FAQs)

Aimtec recommends a PCB layout with a large copper area underneath the module, multiple vias for heat dissipation, and a minimum of 2oz copper thickness to ensure optimal thermal performance.
To ensure reliability in high-temperature environments, it's essential to follow the recommended derating curves, provide adequate airflow, and consider using a heat sink or thermal interface material to reduce the module's operating temperature.
The maximum allowable capacitance for the input and output filters is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the input capacitance below 10uF and the output capacitance below 20uF to avoid stability issues.
Yes, the AM2D-1205SZ can be used in a redundant or parallel configuration, but it's essential to follow Aimtec's application notes and guidelines to ensure proper synchronization and to avoid any potential issues with output voltage regulation.
The typical start-up time for the AM2D-1205SZ is around 10-20ms, but this can vary depending on the input voltage, output load, and other factors. It's recommended to consult with Aimtec's application engineers for specific guidance on start-up time and sequencing.

Trust Checks

Expert Contribution

System Verified

Community Approved

AM2D-1205SZ Overview

Use the download button to access the AM2D-1205SZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AM2D-, or try a keyword search, such as Power Supply Modules
