AM2D-1212DZ footprint, schematic symbol and 3D model by aimtec

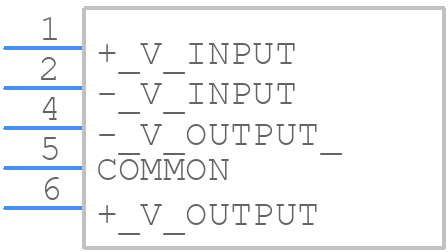

Symbol

click to zoom

PCB Footprints

AM2D-1212DZ - aimtec PCB footprint - Other - Other - 19.50*7.20

click to zoom

3D Models

AM2D-1212DZ - aimtec - 3D model - Other - 19.50*7.20

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AM2D-1212DZ
Part Number AM2D-1212DZ
Manufacturer aimtec
Pin Count 5
Part Category Power Supply
Package Category Other
Footprint Name Other - 19.50*7.20
Released Date Apr 10, 2025
Last Modified Date Apr 10, 2025 9:43 AM UTC
Pinout / Pin List Click Here (Member Only)

AM2D-1212DZ Details

Manufacturer Part Number:
AM2D-1212DZ
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SIP-7/6
Country Of Origin:
Taiwan
ECCN Code:
EAR99
Factory Lead Time:
9 Weeks
Manufacturer:
Aimtec
YTEOL:
5
Additional Feature:
-12V OUTPUT ALSO AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
13.2 V
Input Voltage-Min:
10.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PSMA-T6
Length:
19.5 mm
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
12.36 V
Output Voltage-Min:
11.64 V
Output Voltage-Nom:
12 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
INDUSTRIAL
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
2 W
Trim/Adjustable Output:
NO
Width:
6 mm

AM2D-1212DZ Frequently Asked Questions (FAQs)

Aimtec recommends a 2-layer PCB with a solid ground plane on the bottom layer, and a thermal pad on the top layer connected to the heat sink. Ensure good airflow and a heat sink with a thermal resistance of 10°C/W or lower.
Implement proper thermal management, ensure good airflow, and consider derating the output power according to the temperature derating curve provided in the datasheet. Also, ensure the input voltage is within the recommended range.
Aimtec recommends a maximum output capacitance of 220uF to prevent oscillation and ensure stability. However, the actual capacitance limit may vary depending on the specific application and layout.
Yes, the AM2D-1212DZ can be used in redundant or parallel configurations, but it's essential to ensure proper synchronization and current sharing between the modules. Consult Aimtec's application notes or contact their support team for guidance.
The typical efficiency of the AM2D-1212DZ varies from 85% to 92% depending on the input voltage and load conditions. Refer to the datasheet's efficiency curves or contact Aimtec's support team for more information.

Trust Checks

Community Provided

System Verified

Community Approved

AM2D-1212DZ Overview

Use the download button to access the AM2D-1212DZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AM2D-, or try a keyword search, such as Power Supply Modules
