AM30EW-2412SZ - aimtec

Description: Module DC-DC 24VIN 1-OUT 12V 2.5A 30W 6-Pin Tube , -40ºC to + 75ºC , 1600VDC

Download AM30EW-2412SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

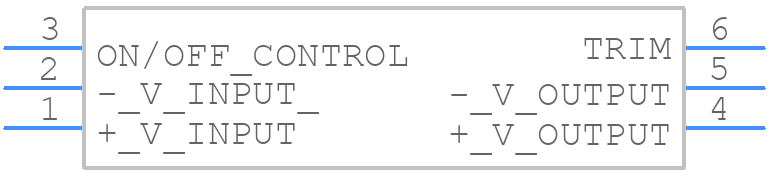

AM30EW-2412SZ - aimtec - PCB symbol
click to zoom
PCB Footprints

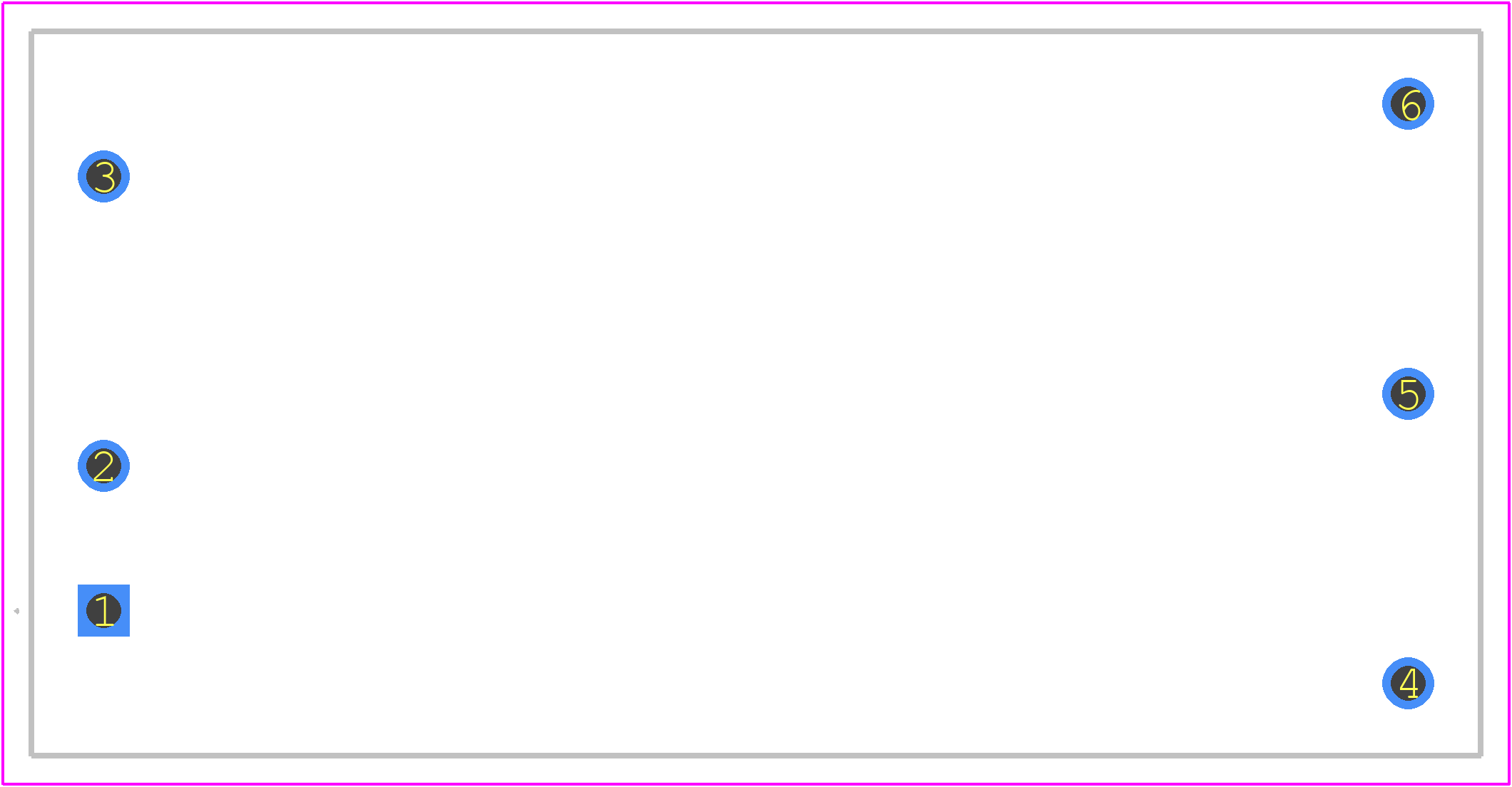

AM30EW-2412SZ - aimtec PCB footprint - Other - Other - AM30EW-2412SZ-1
click to zoom
3D Models
AM30EW-2412SZ - aimtec - 3D model - Other - AM30EW-2412SZ-1
click to zoom

AM30EW-2412SZ Details

  • Manufacturer Part Number:

    AM30EW-2412SZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    37 Weeks

  • Manufacturer:

    Aimtec

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P6

  • Length:

    50.8 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    30 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

AM30EW-2412SZ Frequently Asked Questions (FAQs)

  • Aimtec recommends using a 10uF to 22uF ceramic or electrolytic capacitor with a voltage rating of 50V or higher, placed as close as possible to the input pins.
  • Ensure good airflow around the converter, avoid blocking the airflow vents, and consider using a heat sink if the ambient temperature exceeds 50°C. Also, follow the recommended PCB layout and thermal design guidelines.
  • The maximum recommended output capacitance is 220uF. Exceeding this value may cause instability or oscillation in the converter.
  • While the AM30EW-2412SZ is a high-quality converter, it is not specifically designed for high-reliability or military applications. For such applications, consider using converters with specific military or aerospace certifications, such as MIL-STD-810 or DO-160.
  • Check the input voltage, ensure proper connections, and verify the output voltage using an oscilloscope or multimeter. Also, review the PCB layout and thermal design to ensure they meet the recommended guidelines. If issues persist, contact Aimtec's technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM30EW-2412SZ Overview

Use the download button to access the AM30EW-2412SZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM30E, or try a keyword search, such as Power Supply Modules
