AM30K-2403S-NZ - aimtec

Description: AM30K-2403S-NZ: SpecificationsWattage 30Max output current (A): 6Output Type: SingleInput Voltage: 18~36, Output Voltage: 3.3V, 1%. max.Input Output Isolation (VDC): 1500Package: 2x1.6Temperature range: -40C to +85C

Download AM30K-2403S-NZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

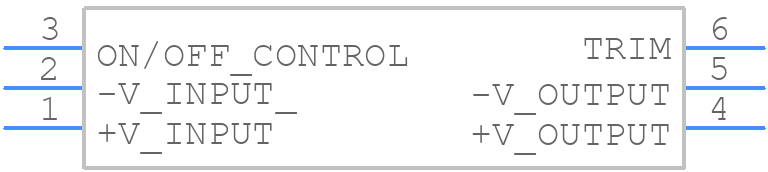

AM30K-2403S-NZ - aimtec - PCB symbol
click to zoom
PCB Footprints

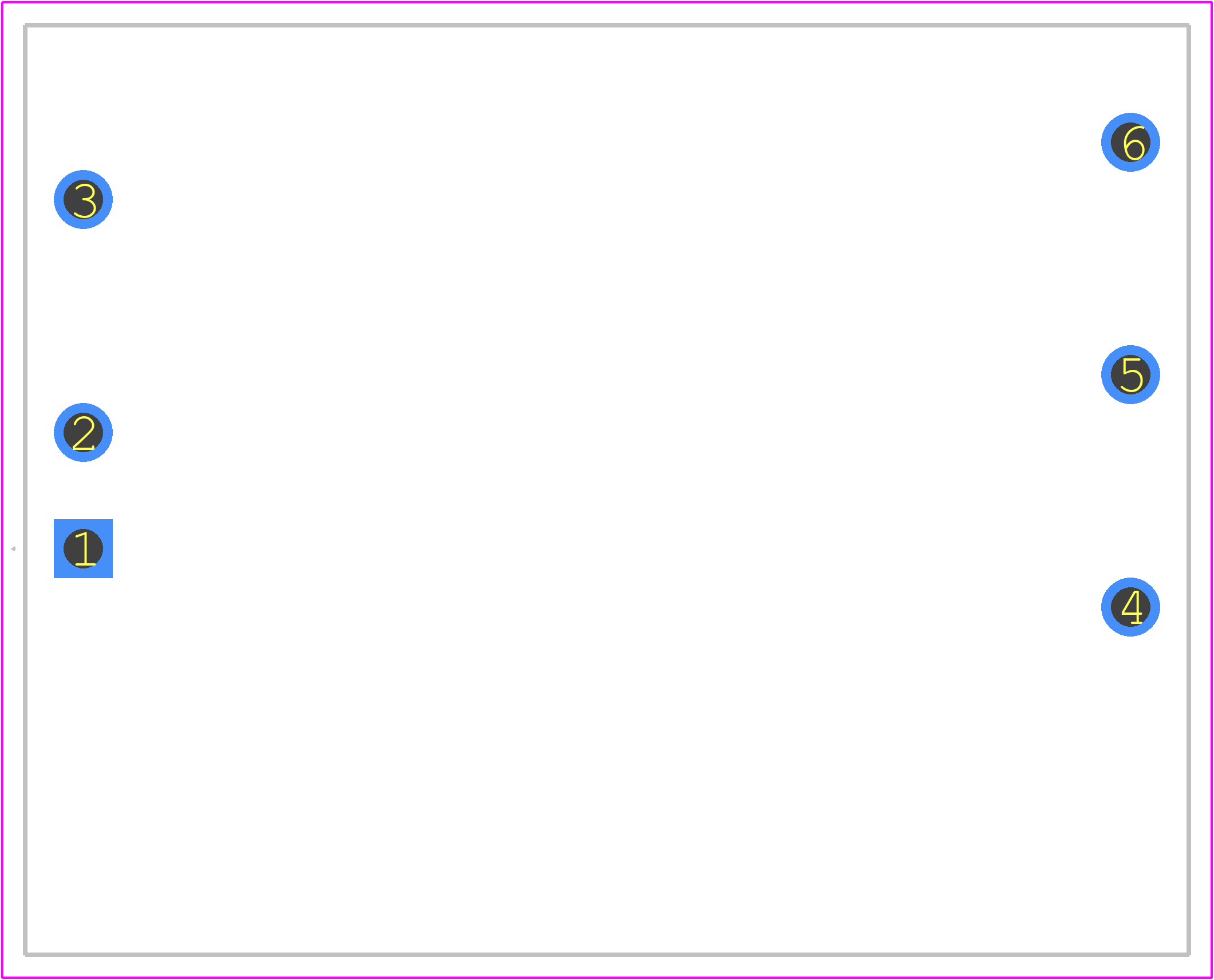

AM30K-2403S-NZ - aimtec PCB footprint - Other - Other - AM30K-2403S-NZ
click to zoom
3D Models
AM30K-2403S-NZ - aimtec - 3D model - Other - AM30K-2403S-NZ
click to zoom

AM30K-2403S-NZ Details

  • Manufacturer Part Number:

    AM30K-2403S-NZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Aimtec

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM30K-2403S-NZ Overview

Use the download button to access the AM30K-2403S-NZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM30K, or try a keyword search, such as Other Signal Circuits
