Aimtec recommends a PCB layout with a solid ground plane, minimal thermal resistance, and adequate copper thickness. A thermal pad on the bottom of the module can help dissipate heat. Consult Aimtec's application notes for detailed guidelines.
Follow proper PCB design and layout practices, use a metal enclosure, and ensure proper filtering and shielding. Aimtec recommends compliance with EN 55022 and EN 55024 standards. Consult Aimtec's EMC guidelines for more information.
Aimtec provides a derating curve in their application notes, which shows the recommended output power reduction at elevated temperatures to ensure reliable operation. Typically, the output power should be reduced by 1-2% per degree Celsius above 50°C.
Yes, the AM6T-2405S-NZ can be used in redundant or parallel configurations, but it's essential to follow Aimtec's guidelines for synchronization, current sharing, and fault detection to ensure reliable operation.
Aimtec typically provides an MTBF rating of >1 million hours at 25°C, calculated according to MIL-HDBK-217F. However, this value may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM6T-2405S-NZ Overview

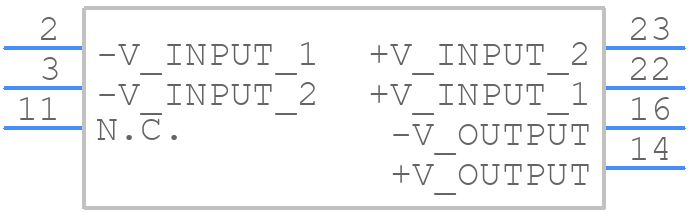

Use the download button to access the AM6T-2405S-NZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM6T-,
or try a keyword search, such as Power Supply Modules
