Aimtec recommends a PCB layout with a solid ground plane, wide traces for power lines, and a thermal pad for heat dissipation. A thermal management strategy such as a heat sink or thermal interface material can also be used to keep the junction temperature below 125°C.
To ensure reliability and longevity, operate the module within the recommended temperature range, avoid thermal shocks, and ensure proper cooling. Additionally, follow proper storage and handling procedures, and avoid exposing the module to moisture or contaminants.
Aimtec recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitors should be rated for the maximum input voltage and operating temperature range.
Yes, the AME20-12SBJZ can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper operation and synchronization. Consult Aimtec's application notes or contact their technical support for guidance.
The AME20-12SBJZ is designed to withstand input voltage transients and brownouts within the specified range. However, it's essential to ensure that the input voltage returns to a stable level within the recommended range to maintain proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AME20-12SBJZ Overview

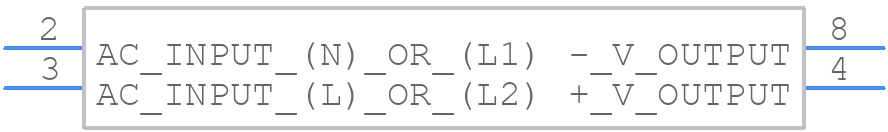

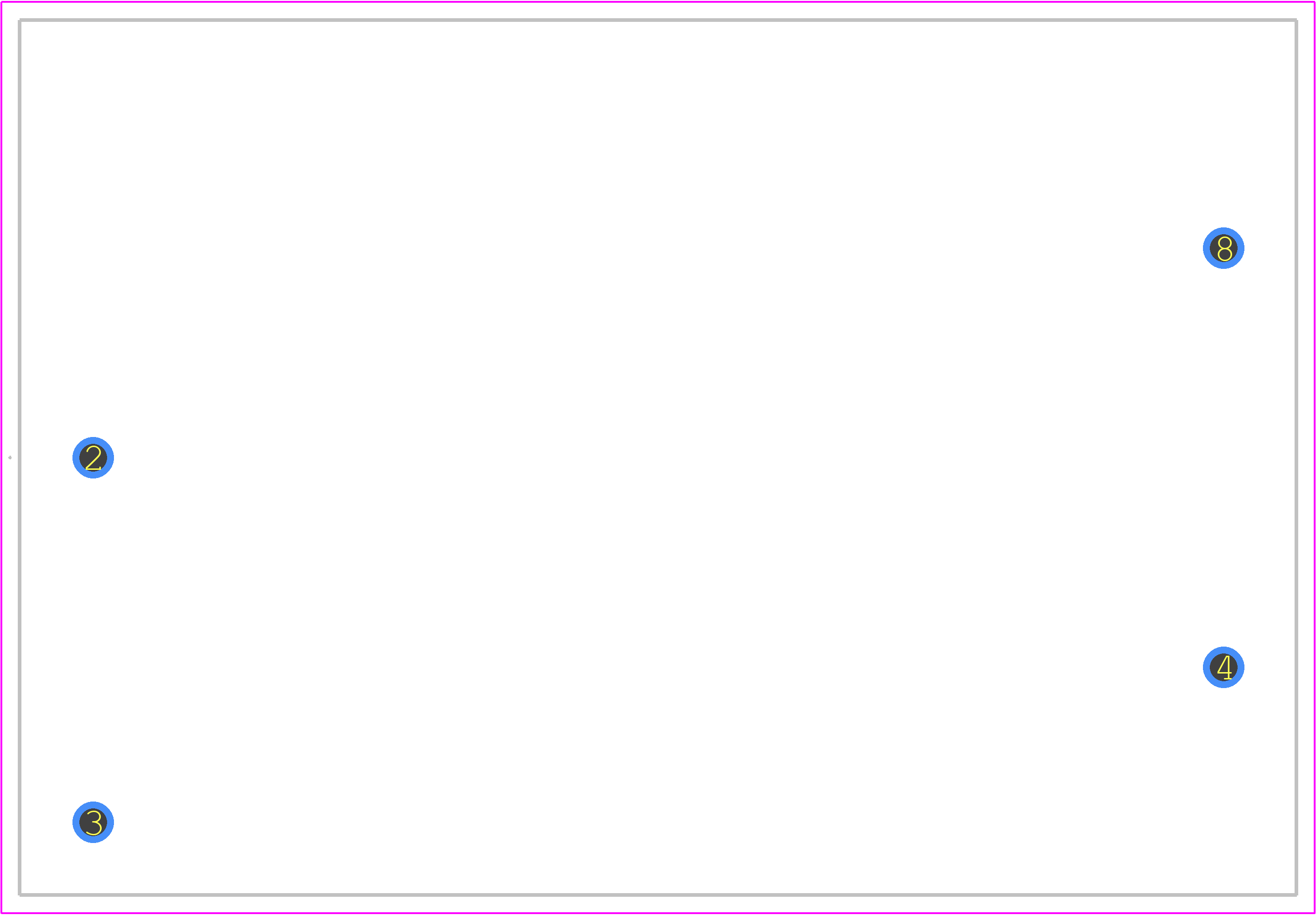

Use the download button to access the AME20-12SBJZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AME20,
or try a keyword search, such as Power Supply Modules
