AME3-5SBAZ - aimtec

Description: AC/DC Power Supply Single-OUT 5V 0.6A 3W 4-Pin

Download AME3-5SBAZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

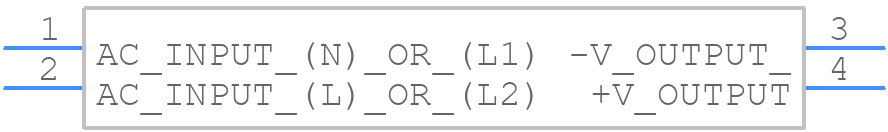

Symbol
AME3-5SBAZ - aimtec - PCB symbol
click to zoom
PCB Footprints
AME3-5SBAZ - aimtec PCB footprint - Other - Other - AME3-5SBAZ-1
click to zoom
3D Models
AME3-5SBAZ - aimtec - 3D model - Other - AME3-5SBAZ-1
click to zoom

AME3-5SBAZ Details

  • Manufacturer Part Number:

    AME3-5SBAZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-4

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Aimtec

  • YTEOL:

    7

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    528 V

  • Input Voltage-Min:

    90 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-PDMA-P4

  • Length:

    35.6 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    45 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    19.82 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    23.31 mm

AME3-5SBAZ Frequently Asked Questions (FAQs)

  • Aimtec recommends a PCB layout with a solid ground plane and thermal vias under the module to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Aimtec recommends following the recommended PCB mounting and screw torque specifications to ensure the module is securely fastened. Additionally, conformal coating and potting can be applied to enhance reliability in high-vibration environments.
  • Aimtec recommends keeping the input and output filter capacitance below 10uF to avoid affecting the module's stability and performance.
  • Yes, the AME3-5SBAZ can be used in redundant or parallel configurations, but it's essential to follow Aimtec's guidelines for synchronization and current sharing to ensure reliable operation.
  • The typical start-up time for the AME3-5SBAZ is around 10-20ms, but this can vary depending on the input voltage, output load, and other factors.
