Aimtec recommends a PCB layout with a solid ground plane, minimal thermal resistance, and adequate copper thickness to ensure efficient heat dissipation. A thermal pad or heat sink is also recommended to maintain a junction temperature below 125°C.
The AME40-24SMAZ has built-in input voltage transient protection, which can withstand voltage spikes up to 40V for 100ms. However, it's still recommended to add external transient protection devices, such as TVS diodes, to ensure the module's reliability in harsh environments.
Aimtec provides a derating curve in the datasheet, which shows the maximum output power versus ambient temperature. As a general guideline, the output power should be derated by 2.5% per degree Celsius above 50°C to ensure reliable operation.
Yes, the AME40-24SMAZ can be used in a redundant or parallel configuration, but it requires careful consideration of the system's overall design, including the input voltage, output voltage, and current sharing. Aimtec recommends consulting with their application engineers for specific guidance.
Aimtec estimates the MTBF of the AME40-24SMAZ to be around 1.5 million hours, based on MIL-HDBK-217F calculations. However, the actual MTBF may vary depending on the application, operating conditions, and environmental factors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AME40-24SMAZ Overview

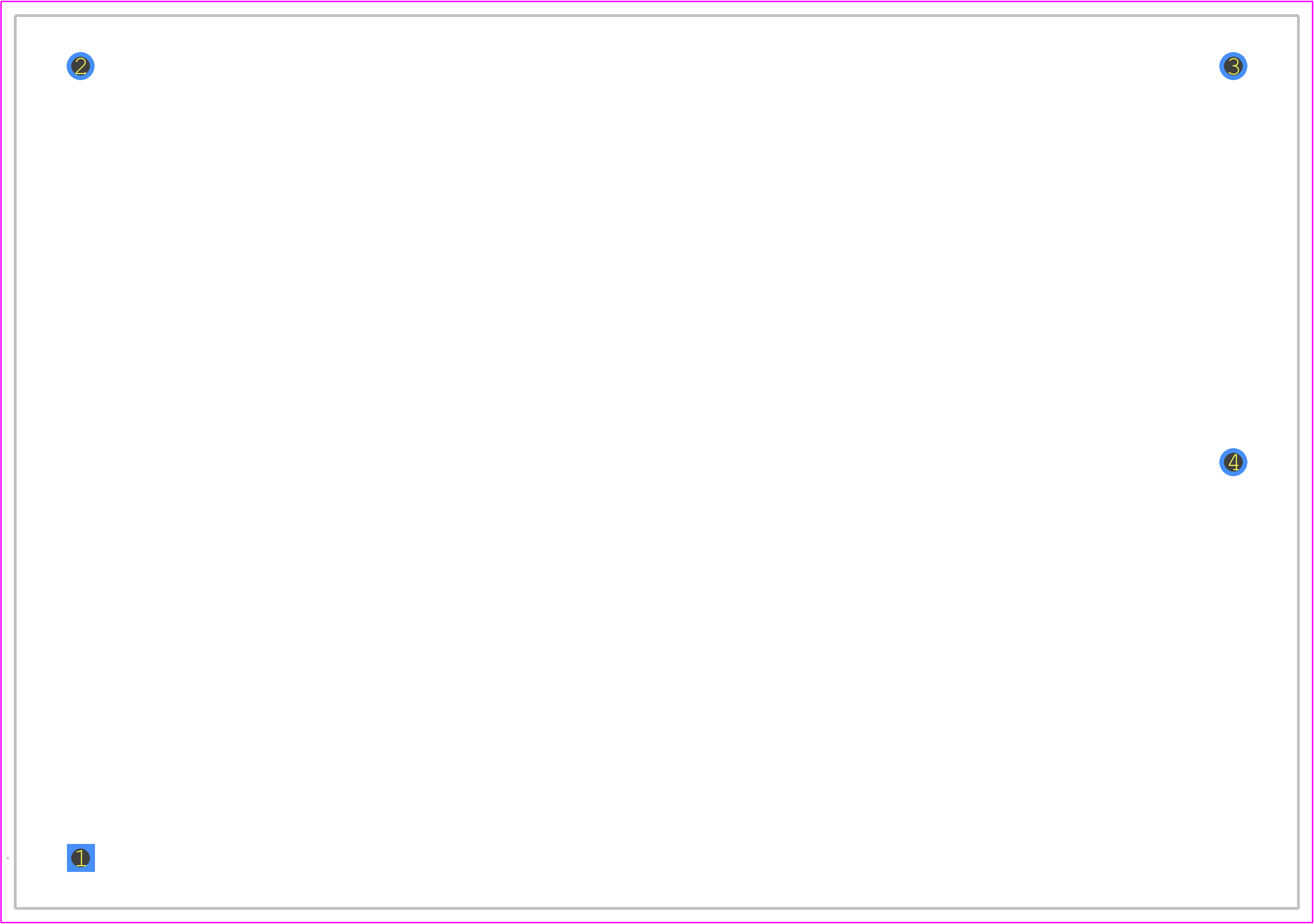

Use the download button to access the AME40-24SMAZ schematic symbol, PCB footprint, and 3D model.
