Aimtec recommends a PCB layout with a solid ground plane, wide traces for power lines, and a thermal pad for heat dissipation. A thermal management plan should include a heat sink or thermal interface material to keep the junction temperature below 125°C.
To ensure reliability and longevity, operate the module within the recommended temperature range, avoid thermal shocks, and follow proper storage and handling procedures. Additionally, consider using conformal coating and encapsulation to protect the module from environmental stresses.
Aimtec recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection should be based on the specific application's requirements and should consider factors such as voltage rating, temperature range, and ripple current.
To troubleshoot issues, start by verifying the input voltage, output load, and ambient temperature. Check for proper PCB layout, thermal management, and component selection. Use oscilloscopes and other diagnostic tools to identify voltage ripple, noise, or other anomalies. Consult Aimtec's application notes and technical support for further guidance.
The AMEL10-12S277HAVZ module meets various safety certifications, including UL60950-1, CE, and RoHS. Ensure that the module is used in accordance with the recommended operating conditions and guidelines to maintain compliance. Consult Aimtec's documentation and technical support for specific certification details.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMEL10-12S277HAVZ Overview

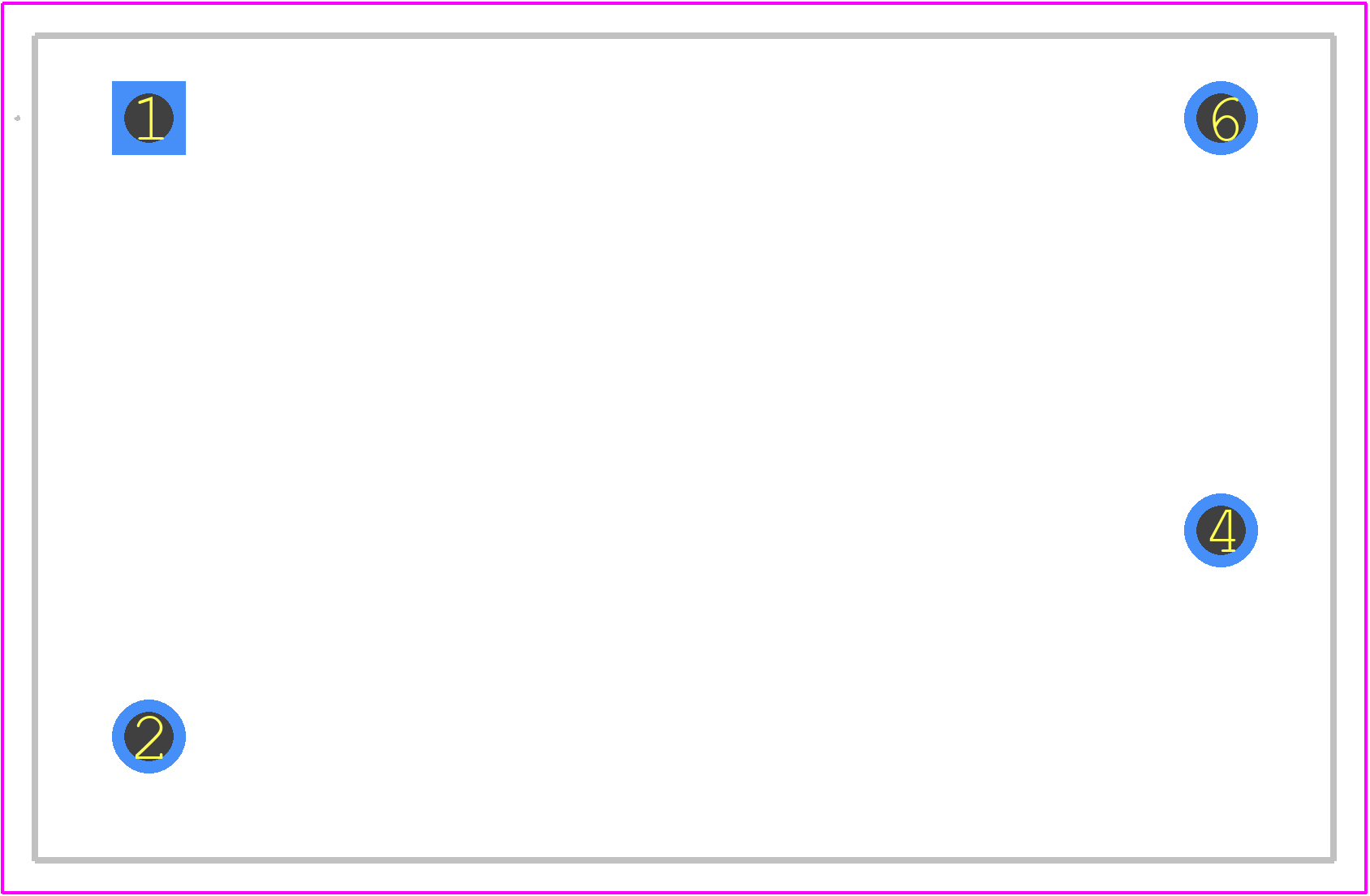

Use the download button to access the AMEL10-12S277HAVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMEL1,
or try a keyword search, such as Power Supply Modules
