AMEL10-5S277HAVZ - aimtec

Description: Enclosed AC DC Converters 1 Output 5V 2A 85 ~ 305 VAC, 100 ~ 430 VDC Input

Download AMEL10-5S277HAVZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AMEL10-5S277HAVZ - aimtec - PCB symbol
click to zoom

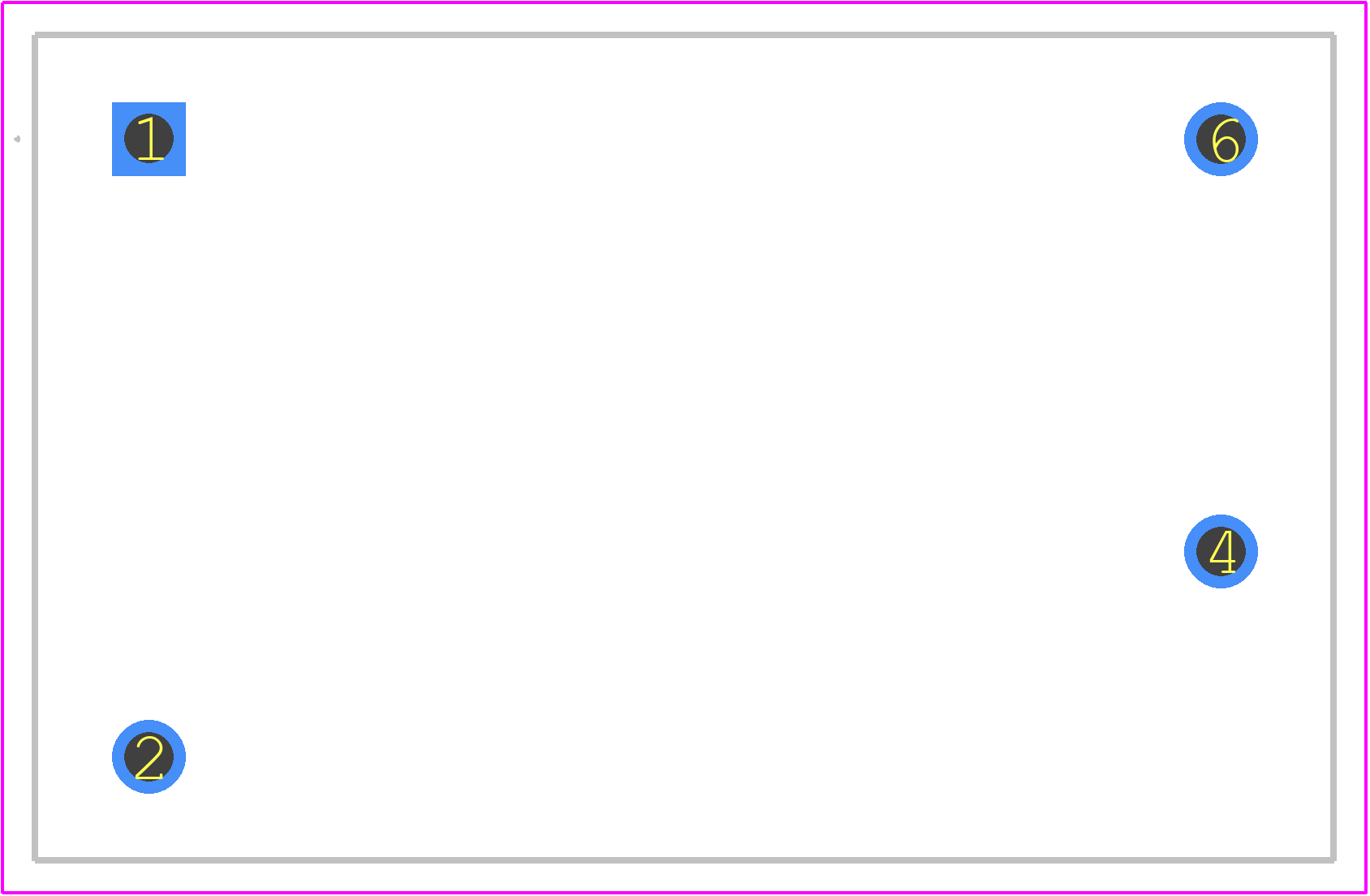

PCB Footprints
AMEL10-5S277HAVZ - aimtec PCB footprint - Other - Other - AMEL10-5S277HAVZ-2
click to zoom
3D Models
AMEL10-5S277HAVZ - aimtec - 3D model - Other - AMEL10-5S277HAVZ-2
click to zoom

AMEL10-5S277HAVZ Details

  • Manufacturer Part Number:

    AMEL10-5S277HAVZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Aimtec

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN,IEC, UKCA, UL

  • Efficiency (Main Output):

    79%

  • Input Voltage-Max:

    305 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-PDMA-P4

  • Length:

    40 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER CURRENT; OVER VOLTAGE; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Seated Height-Max:

    21.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    1 s

  • Width:

    25.4 mm

AMEL10-5S277HAVZ Frequently Asked Questions (FAQs)

  • Aimtec recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a thermal via to ensure efficient heat dissipation. A minimum of 2oz copper thickness is recommended for the PCB.
  • Aimtec recommends following the recommended PCB mounting and screw torque specifications to ensure the module is securely fastened. Additionally, using a conformal coating and potting the module can help improve reliability in high-vibration environments.
  • Aimtec recommends a maximum output filter capacitance of 10uF to ensure stability and prevent oscillations. Exceeding this value may lead to instability or reduced performance.
  • Yes, the AMEL10-5S277HAVZ can be used in redundant or parallel configurations, but it's essential to follow Aimtec's guidelines for synchronization and current sharing to ensure reliable operation.
  • Aimtec recommends a fuse rating of 5A to 10A, depending on the input voltage and current requirements. A slow-blow fuse type is recommended to ensure reliable operation and minimize false tripping.
