Aimtec recommends a PCB layout with a solid ground plane, wide traces for power lines, and a thermal pad for heat dissipation. A thermal interface material (TIM) should be used between the module and the heat sink. The heat sink should have a thermal resistance of less than 5°C/W.
To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to +85°C). Implement proper thermal management, and ensure the module is not exposed to moisture, vibration, or mechanical stress. Regularly inspect the module for signs of wear or damage.
Aimtec recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitors should be rated for the maximum operating voltage and have a temperature rating of at least 105°C.
Yes, the AMEL15-24S277HAVZ can be used in redundant or parallel configurations. However, it's essential to ensure proper synchronization and control of the modules to prevent oscillations or instability. Consult Aimtec's application notes or contact their technical support for guidance on implementing redundant or parallel configurations.
The AMEL15-24S277HAVZ is designed to withstand input voltage transients and brownouts. It will automatically recover when the input voltage returns to the normal operating range. However, if the input voltage drops below the undervoltage lockout (UVLO) threshold, the module will shut down to protect itself and the load.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMEL15-24S277HAVZ Overview

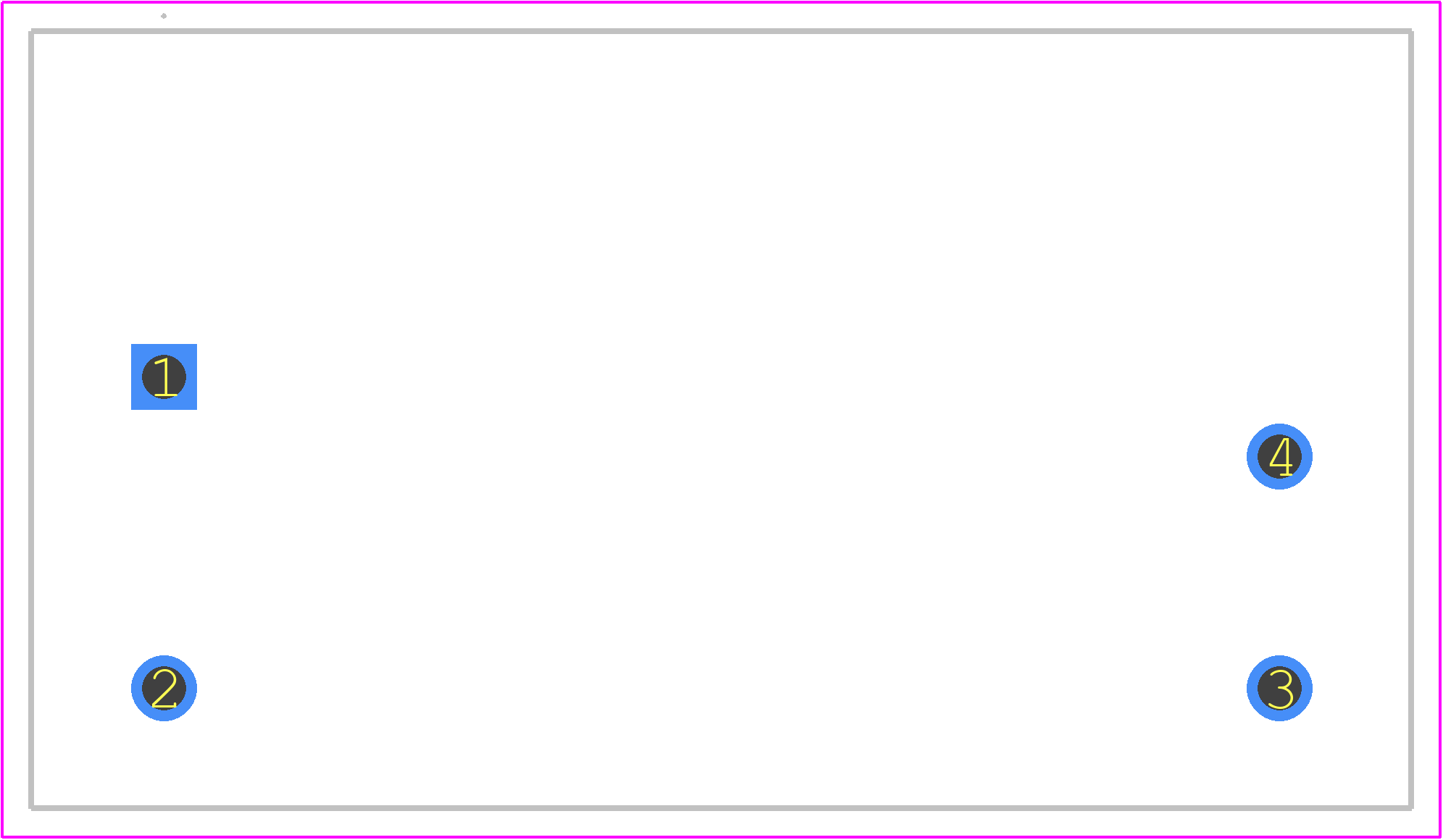

Use the download button to access the AMEL15-24S277HAVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMEL1,
or try a keyword search, such as Power Supply Modules
