Aimtec recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure reliability and longevity, operate the module within the recommended temperature range, avoid thermal shocks, and follow proper storage and handling procedures. Additionally, consider using conformal coating and encapsulation to protect the module from environmental stresses.
Aimtec recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection should be based on the specific application's requirements and should consider factors such as voltage rating, ripple current, and temperature range.
To troubleshoot common issues, follow a systematic approach: check the input voltage, output load, and module temperature; verify the PCB layout and thermal management; and inspect the module for signs of physical damage or wear. Consult Aimtec's application notes and technical support for further guidance.
Yes, the AMEL20-12S277HAVZ module is designed to meet CISPR 22 Class B emissions standards. To ensure EMI/EMC compliance, follow proper PCB layout and grounding practices, use shielding and filtering components as needed, and consult Aimtec's EMI/EMC guidelines and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMEL20-12S277HAVZ Overview

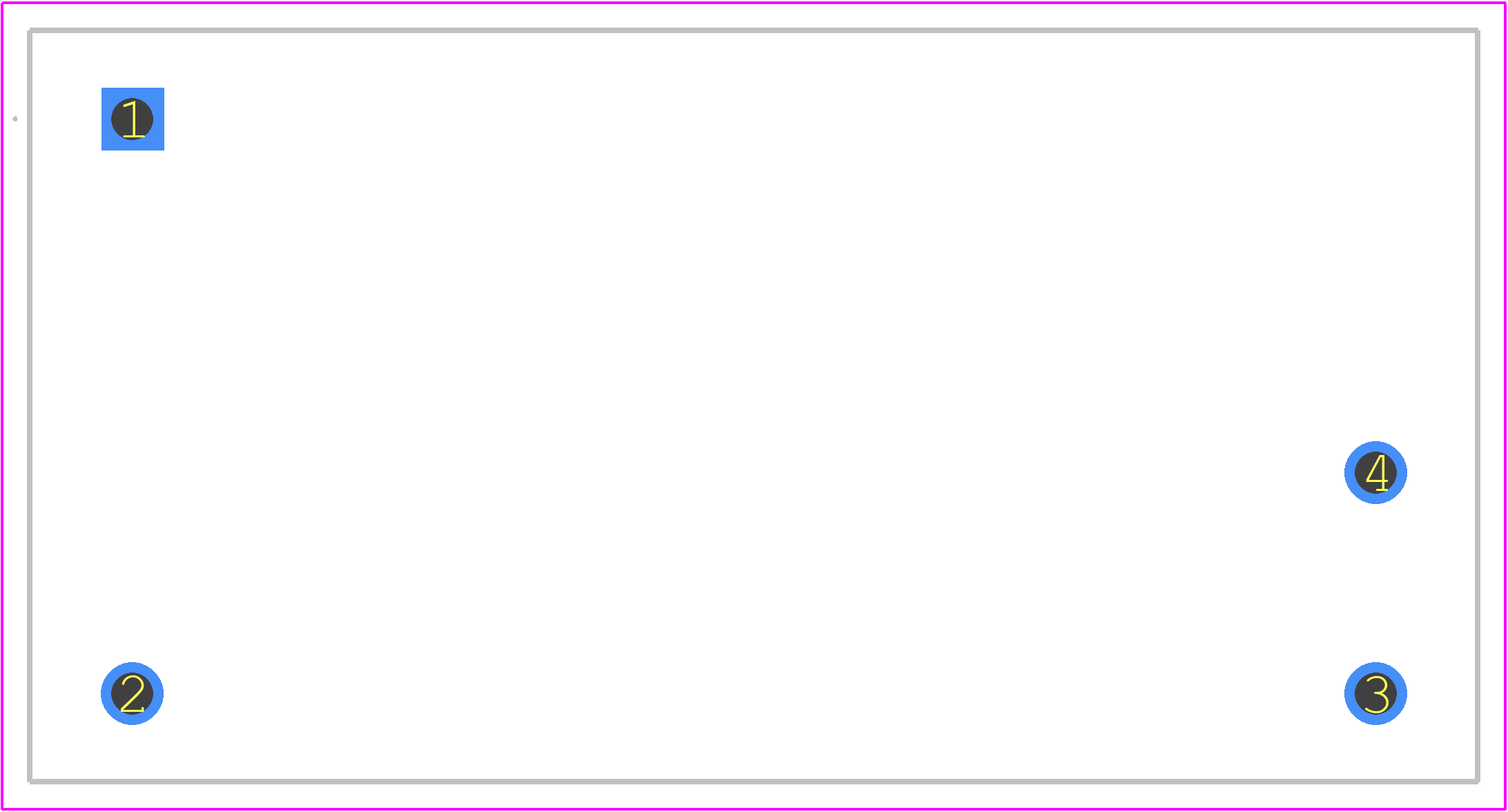

Use the download button to access the AMEL20-12S277HAVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMEL2,
or try a keyword search, such as Power Supply Modules
