Aimtec recommends a PCB layout with a solid ground plane, wide traces for power lines, and a thermal pad for heat dissipation. A thermal management strategy such as a heat sink or thermal interface material can also be used to keep the junction temperature below 125°C.
To ensure reliability and longevity, operate the module within the recommended temperature range, avoid thermal shocks, and follow proper storage and handling procedures. Additionally, consider using conformal coating and encapsulation to protect the module from environmental stresses.
The AMEL20-24S277HAVZ module is designed to meet CISPR 22 Class B emissions standards. To minimize EMI, use a metal enclosure, keep the module away from antennas and other EMI-sensitive components, and use EMI filters or shielding on the input and output lines.
Yes, the AMEL20-24S277HAVZ module can be used in redundant or parallel configurations, but it's essential to follow proper design and layout guidelines to ensure reliable operation and minimize the risk of oscillation or instability.
The AMEL20-24S277HAVZ module meets safety standards such as UL 60950-1, EN 60950-1, and IEC 60950-1. Ensure compliance with regulatory standards by following proper installation, operation, and maintenance procedures, and by using the module in accordance with its intended application and ratings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMEL20-24S277HAVZ Overview

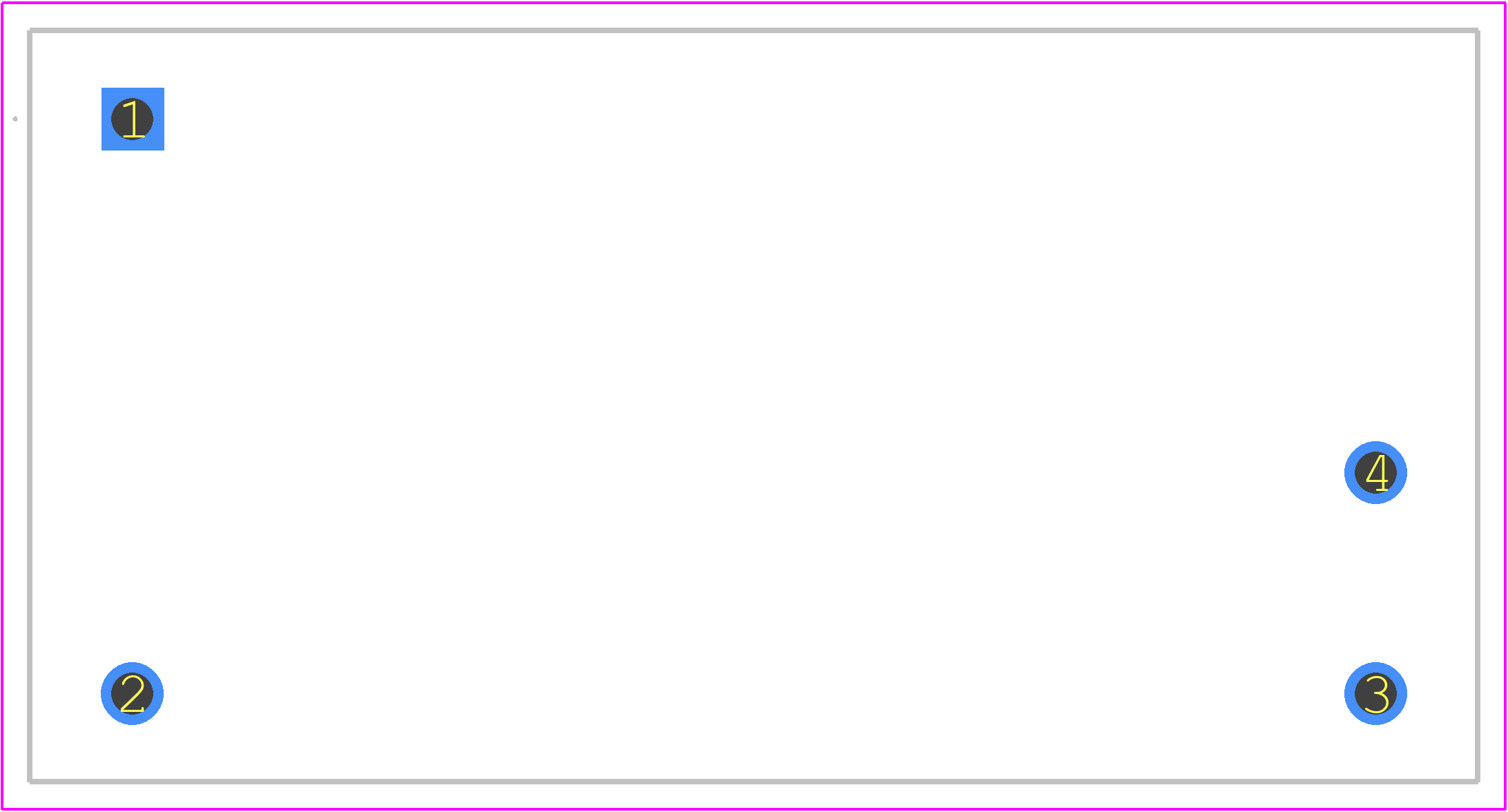

Use the download button to access the AMEL20-24S277HAVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMEL2,
or try a keyword search, such as Power Supply Modules
