AMG883642 - Panasonic

Description: Product: Infrared Array Sensor Grid-EYE, Series/Type: AMG883642 (Narrow SMD type), Number of pixel: 64 (Vertical 8 x Horizontal 8 Matrix), Operating voltage (DC) (V): 3.3, Viewing angle (°): 35.6, Amplification factor: Low gain, Mounting form: Surface Mount Type

Download AMG883642 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

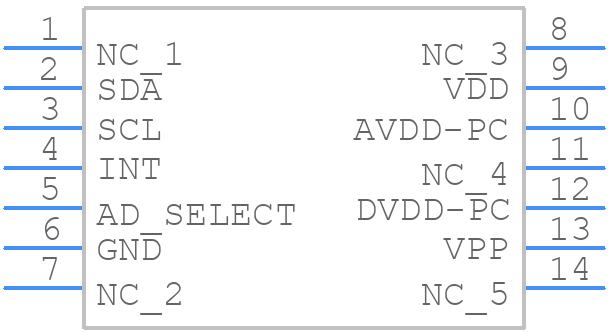

AMG883642 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AMG883642 - Panasonic PCB footprint - Other - Other - 11.6x8.0x5.93mm
click to zoom
3D Models
AMG883642 - Panasonic - 3D model - Other - 11.6x8.0x5.93mm
click to zoom

AMG883642 Details

  • Manufacturer Part Number:

    AMG883642

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD-14

  • Country Of Origin:

    Japan

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Sensors/Transducers Type:

    INFRARED SENSOR, THERMAL, THERMOPILE

  • Surface Mount:

    YES

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMG883642 Overview

Use the download button to access the AMG883642 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMG88, or try a keyword search, such as Infrared Sensors
