Part Image

AMG8853 - Panasonic

Description: Product: Infrared Array Sensor Grid-EYE, Series/Type: AMG88xx (High performance type), Number of pixel: 64 (Vertical 8 x Horizontal 8 Matrix), Operating voltage (DC) (V): 5, Viewing angle (°): 60, Amplification factor: High gain, Mounting form: Surface Mount Type

Download AMG8853 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

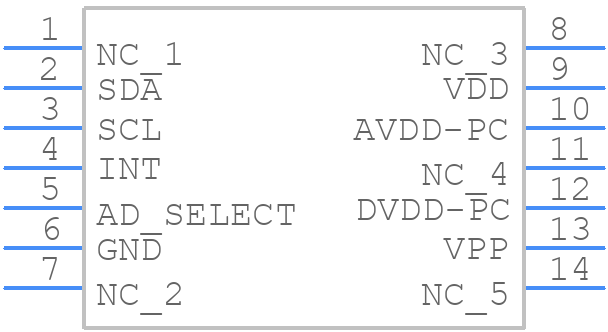

AMG8853 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AMG8853 - Panasonic PCB footprint - Other - Other - AMG8853-1
click to zoom
3D Models
AMG8853 - Panasonic - 3D model - Other - AMG8853-1
click to zoom

AMG8853 Details

  • Manufacturer Part Number:

    AMG8853

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-06-09

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Sensors/Transducers Type:

    INFRARED SENSOR, THERMAL, THERMOPILE

AMG8853 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the package for airflow and heat dissipation.
  • Apply a conformal coating to the PCB and ensure the AMG8853 is stored in a dry, nitrogen-filled environment during assembly. Follow Panasonic's recommended reflow soldering profile to minimize moisture absorption.
  • The maximum allowable voltage on the VCC pin is 3.6V. Exceeding this voltage may cause permanent damage to the device.
  • Yes, the AMG8853 is suitable for battery-powered devices due to its low power consumption (typically 1.5mA). However, ensure proper power management and voltage regulation to prevent damage.
  • Use a logic analyzer or oscilloscope to monitor the I2C bus and verify proper communication. Check the device's power supply, decoupling capacitors, and PCB layout for any issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMG8853 Overview

Use the download button to access the AMG8853 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMG88, or try a keyword search, such as Infrared Sensors
