AMG8854M01 - Panasonic

Description: Product: Infrared Array Sensor Grid-EYE, Series/Type: AMG8854M01 (Narrow pc board type), Number of pixel: 64 (Vertical 8 x Horizontal 8 Matrix), Operating voltage (DC) (V): 5, Viewing angle (°): 35.6, Amplification factor: Low gain, Mounting form: PC board type

Download AMG8854M01 Model
Schematic

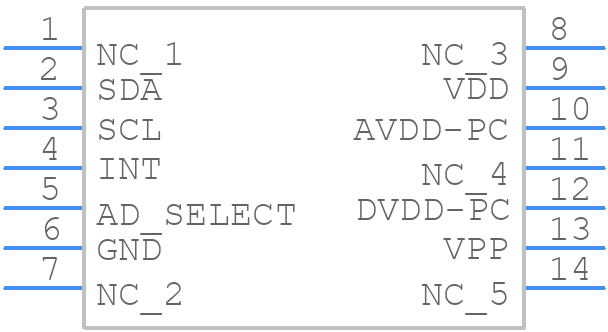

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AMG8854M01 - Panasonic PCB footprint - Other - Other - 14-SMD Module
click to zoom
3D Models
AMG8854M01 - Panasonic  - 3D model - Other - 14-SMD Module
click to zoom

AMG8854M01 Details

  • Manufacturer Part Number:

    AMG8854M01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2017-08-28

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Sensors/Transducers Type:

    INFRARED SENSOR, THERMAL, THERMOPILE

AMG8854M01 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to improve heat dissipation.
  • To ensure accuracy, the sensor should be calibrated before use. The calibration process involves comparing the sensor's output to a known temperature reference. Additionally, the sensor should be shielded from air currents and radiation sources that may affect the temperature reading.
  • The recommended power-up sequence is to first apply VCC, then VLOGIC, and finally the clock signal. This sequence helps prevent latch-up and ensures proper device operation.
  • To minimize noise sensitivity, use a low-pass filter on the power supply lines, and ensure that the PCB layout is designed to minimize electromagnetic interference (EMI). Additionally, use a ground plane to shield the device from external noise sources.
  • The maximum operating temperature range for the AMG8854M01 is -40°C to 125°C. However, the device's accuracy and reliability may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
