Please enter a minimum 3 letters or numbers
Technical Content
Part Image

AMK-2-13+ - Mini-Circuits

Description: 2X SMT Multiplier, Output Freq 20 - 1000 MHz

Download AMK-2-13+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

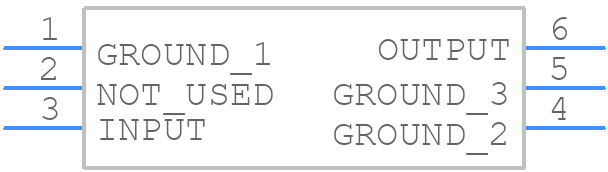

AMK-2-13+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
AMK-2-13+ - Mini-Circuits PCB footprint - Other - Other - AMK-2-13+-5
click to zoom
3D Models
AMK-2-13+ - Mini-Circuits - 3D model - Other - AMK-2-13+-5
click to zoom

AMK-2-13+ Details

  • Manufacturer Part Number:

    AMK-2-13+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Israel, USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    14.5 dB

  • Input Power-Max (CW):

    23 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    500 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    FL6,.2,100

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

AMK-2-13+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AMK-2-13+ is -40°C to +85°C.
  • Yes, the AMK-2-13+ is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The typical current draw of the AMK-2-13+ is around 30mA, but this can vary depending on the specific application and operating conditions.
  • Yes, the AMK-2-13+ can be used in a switching application, but it's recommended to follow proper switching protocols to avoid damage to the device.
  • The recommended PCB layout for the AMK-2-13+ involves using a ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ensure stable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMK-2-13+ Overview

Use the download button to access the AMK-2-13+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMK-2, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.

Suggested Parts

If you searched for AMK-2-13+, you might also be interested in these parts:
Part Number
KSX2-24+
YAT-30A+
PGA-103+
QPC6713SR
TCBT-14+
GRM31CB31H106KA12L
LG T676-P2R1-24-Z
LO P47K-K2M1-24-0-R18-Z
LY T676-R1T1-26

Parts related to AMK-2-13+

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
