Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
To ensure reliable operation, follow the recommended derating curves for temperature and current, and consider using a heat sink or thermal interface material to reduce junction temperature.
Although not explicitly stated in the datasheet, the maximum allowed voltage for the input pins is typically limited to the supply voltage (VCC) + 0.3V to prevent damage from electrostatic discharge (ESD).
Yes, the AMN44122 can be used in switching regulator applications, but ensure that the device is properly bypassed and decoupled to prevent oscillation and noise issues.
The POR and BOD features are designed to reset the device during power-up and brown-out conditions. Ensure that the power supply is stable and within the recommended voltage range to prevent unwanted resets.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMN44122 Overview

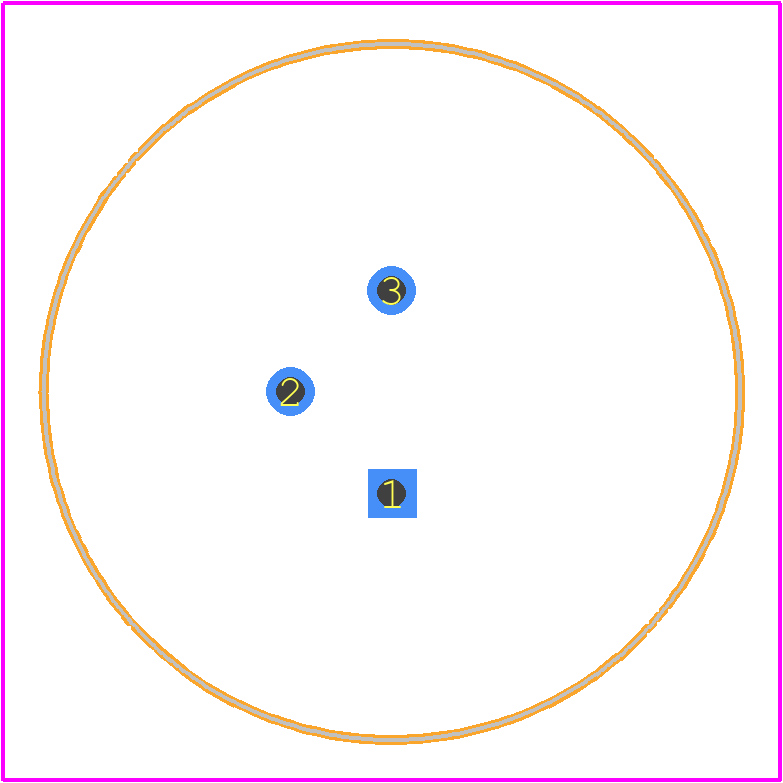

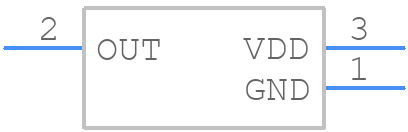

Use the download button to access the AMN44122 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMN44,
or try a keyword search, such as Other Signal Circuits
