AMS29B-40MZ5-Z footprint, schematic symbol and 3D model by Rosenberger

Symbol

click to zoom

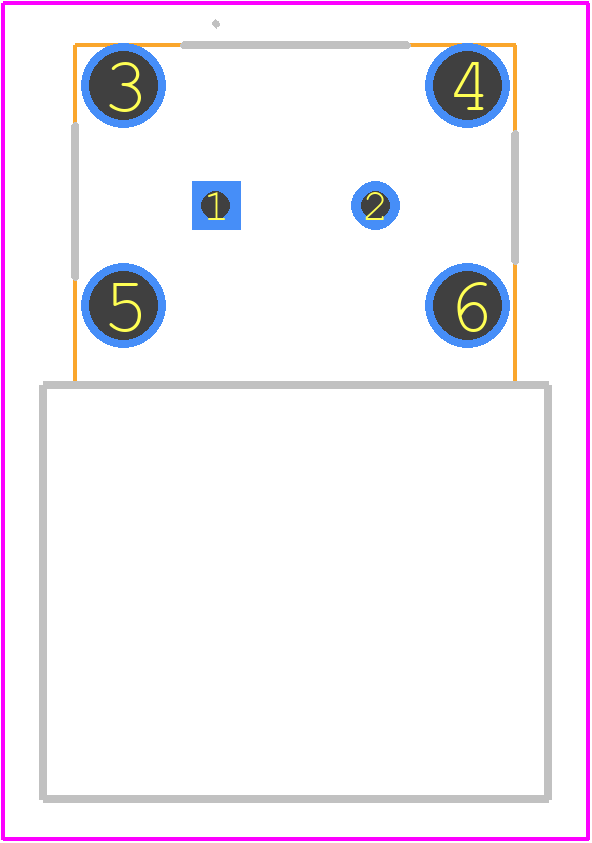

PCB Footprints

AMS29B-40MZ5-Z - Rosenberger PCB footprint - Other - Other - AMS29B-40MZ5-Z-4

click to zoom

3D Models

AMS29B-40MZ5-Z - Rosenberger - 3D model - Other - AMS29B-40MZ5-Z-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AMS29B-40MZ5-Z
Part Number AMS29B-40MZ5-Z
Manufacturer Rosenberger
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - AMS29B-40MZ5-Z-4
Released Date Sep 3, 2022
Last Modified Date Dec 25, 2024 5:38 AM UTC
Pinout / Pin List Click Here (Member Only)

AMS29B-40MZ5-Z Details

Manufacturer Part Number:
AMS29B-40MZ5-Z
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Rosenberger
YTEOL:
7
Additional Feature:
POLARIZED; RATED CURRENT(POWER): 1A
Body Breadth:
0.459 inch
Body Depth:
0.742 inch
Body Length:
0.496 inch
Body/Shell Style:
PLUG
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Style:
COAX
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mixed Contacts:
NO
Mounting Type:
BOARD
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
2

AMS29B-40MZ5-Z Frequently Asked Questions (FAQs)

The recommended torque for tightening the AMS29B-40MZ5-Z connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
Yes, the AMS29B-40MZ5-Z connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 2.
Yes, the AMS29B-40MZ5-Z connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity up to 95% RH.
The AMS29B-40MZ5-Z connector has a mating cycle life of at least 500 cycles.
Yes, the AMS29B-40MZ5-Z connector is designed to be compatible with other Rosenberger products, including cables, adapters, and antennas.

Trust Checks

Community Provided

System Verified

Community Approved

AMS29B-40MZ5-Z Overview

Use the download button to access the AMS29B-40MZ5-Z schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AMS29, or try a keyword search, such as Combination Line Connectors
