The recommended torque for tightening the AMS29D-40MZ5-C connector is 0.4 Nm to 0.6 Nm (3.5 in-lbs to 5.3 in-lbs) to ensure proper mating and prevent damage to the connector.
Yes, the AMS29D-40MZ5-C connector is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, aerospace, and industrial systems.
Yes, the AMS29D-40MZ5-C connector is designed to operate in harsh environments, with a temperature range of -40°C to +125°C (-40°F to +257°F) and humidity up to 95% RH. However, it's essential to follow the recommended installation and sealing procedures to ensure the connector's performance and reliability.
The AMS29D-40MZ5-C connector is designed for a minimum of 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.
Yes, the AMS29D-40MZ5-C connector is part of Rosenberger's AMS series, which is designed to be compatible with other connectors in the same series. However, it's essential to verify compatibility with specific connectors and applications to ensure proper mating and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMS29D-40MZ5-C Overview

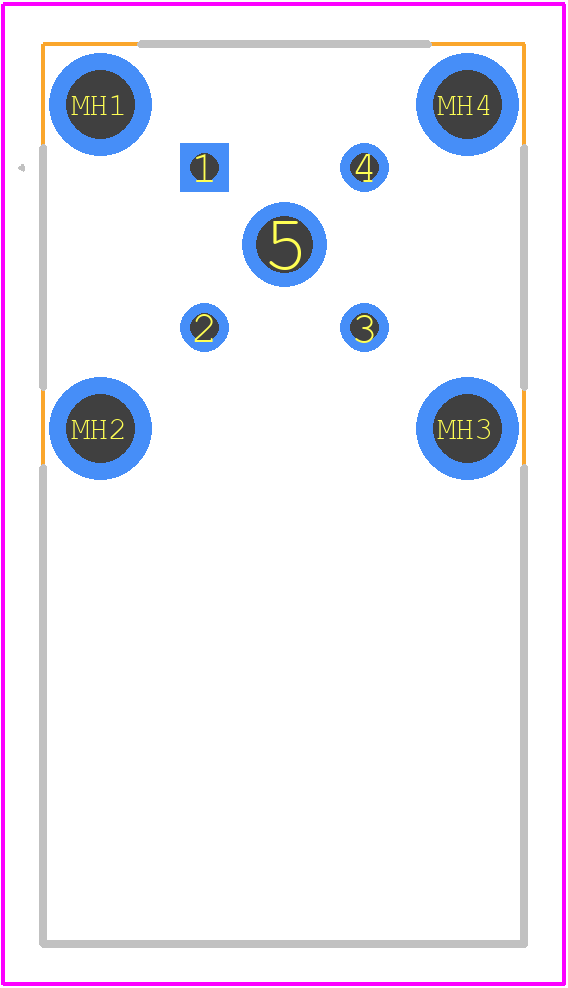

Use the download button to access the AMS29D-40MZ5-C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMS29,
or try a keyword search, such as Combination Line Connectors
