AMS29D-40MZ5-Z - Rosenberger

Description: RF Connectors / Coaxial Connectors Right angle plug PCB w.housing

Download AMS29D-40MZ5-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AMS29D-40MZ5-Z - Rosenberger - PCB symbol
click to zoom
PCB Footprints

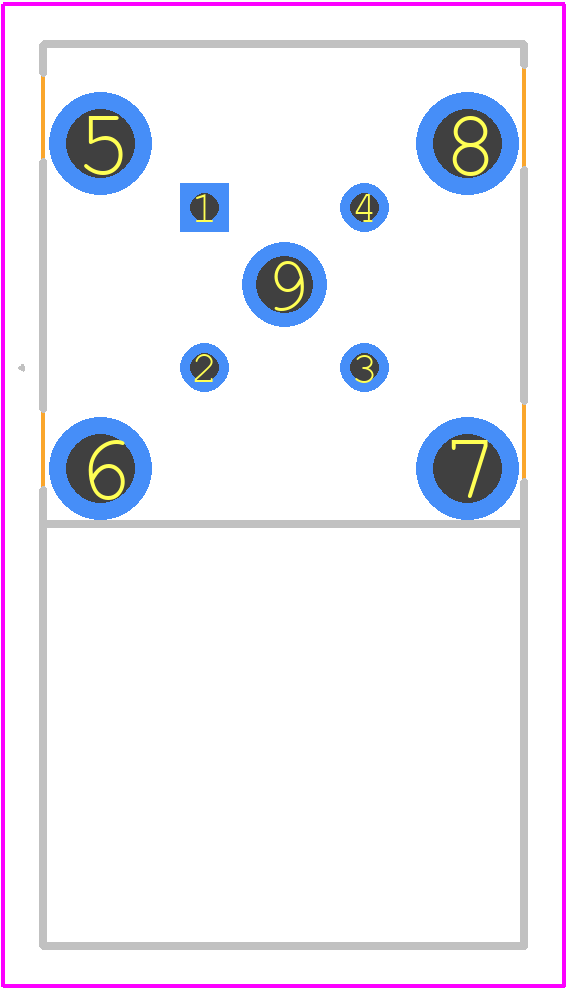

AMS29D-40MZ5-Z - Rosenberger PCB footprint - Other - Other - AMS29D-40MZ5-Z
click to zoom
3D Models
AMS29D-40MZ5-Z - Rosenberger - 3D model - Other - AMS29D-40MZ5-Z
click to zoom

AMS29D-40MZ5-Z Details

  • Manufacturer Part Number:

    AMS29D-40MZ5-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Rosenberger

  • YTEOL:

    9

  • Body Breadth:

    0.618 inch

  • Body Depth:

    0.888 inch

  • Body Length:

    0.472 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Gender:

    MALE

  • Contact Style:

    COAX

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    1 A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

AMS29D-40MZ5-Z Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the AMS29D-40MZ5-Z connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial systems.
  • Yes, the AMS29D-40MZ5-Z connector is designed to operate in harsh environmental conditions, including extreme temperatures, humidity, and exposure to chemicals and fluids.
  • The AMS29D-40MZ5-Z connector is designed to operate up to 40 GHz, making it suitable for high-frequency applications such as millimeter-wave systems and 5G infrastructure.
  • Yes, the AMS29D-40MZ5-Z connector is designed to be compatible with other Rosenberger connectors and adapters, allowing for flexibility and versatility in system design.
